DOC3.3 STATISTICS

This page displays statistics for workings performed by the machines connected to the MES.

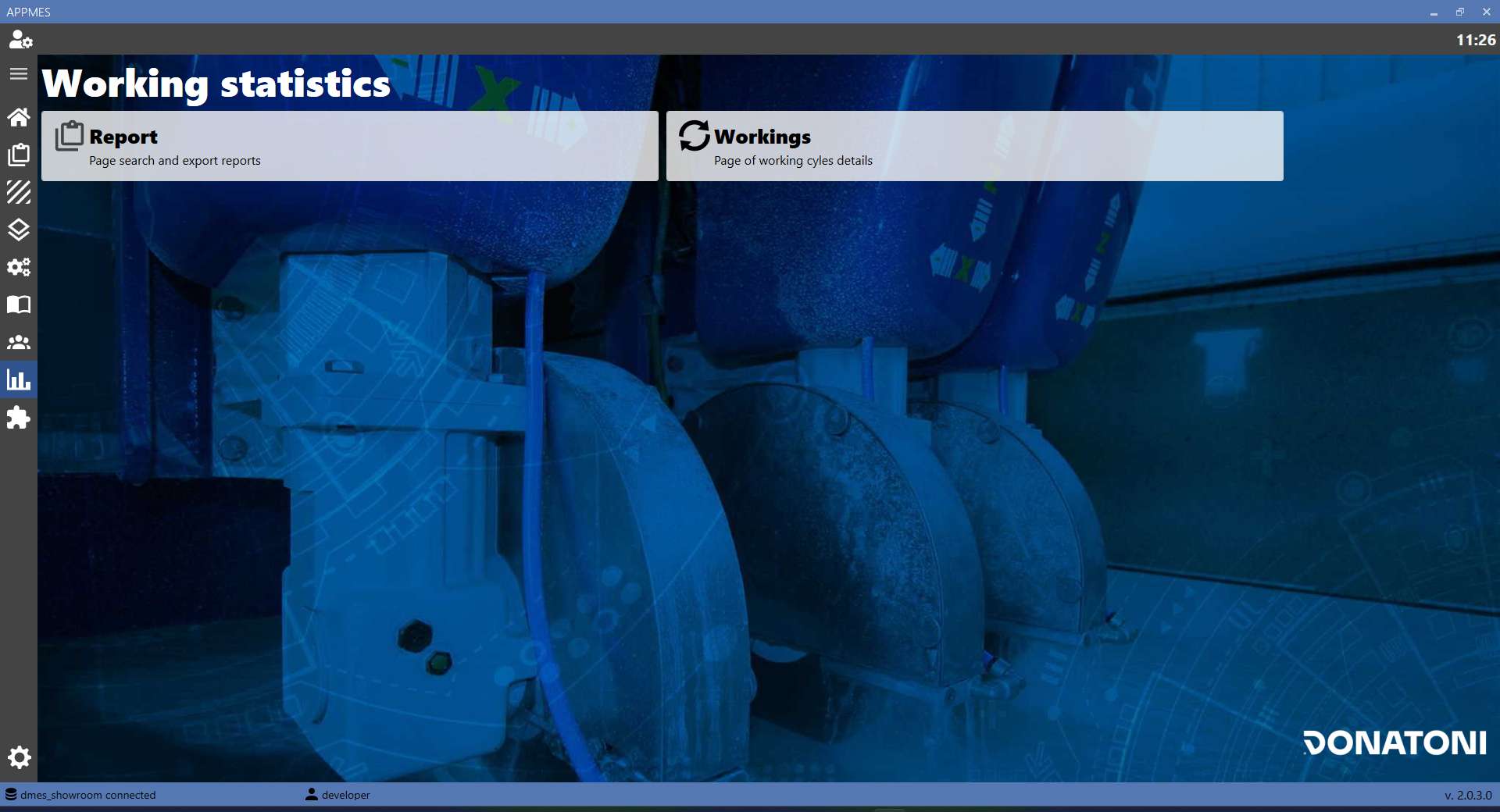

CATEGORIES

The main page provides two buttons for accessing the required statistics subpages.


REPORT
Opens the screen dedicated to working reports.


WORKING
Opens the screen with work cycle details.

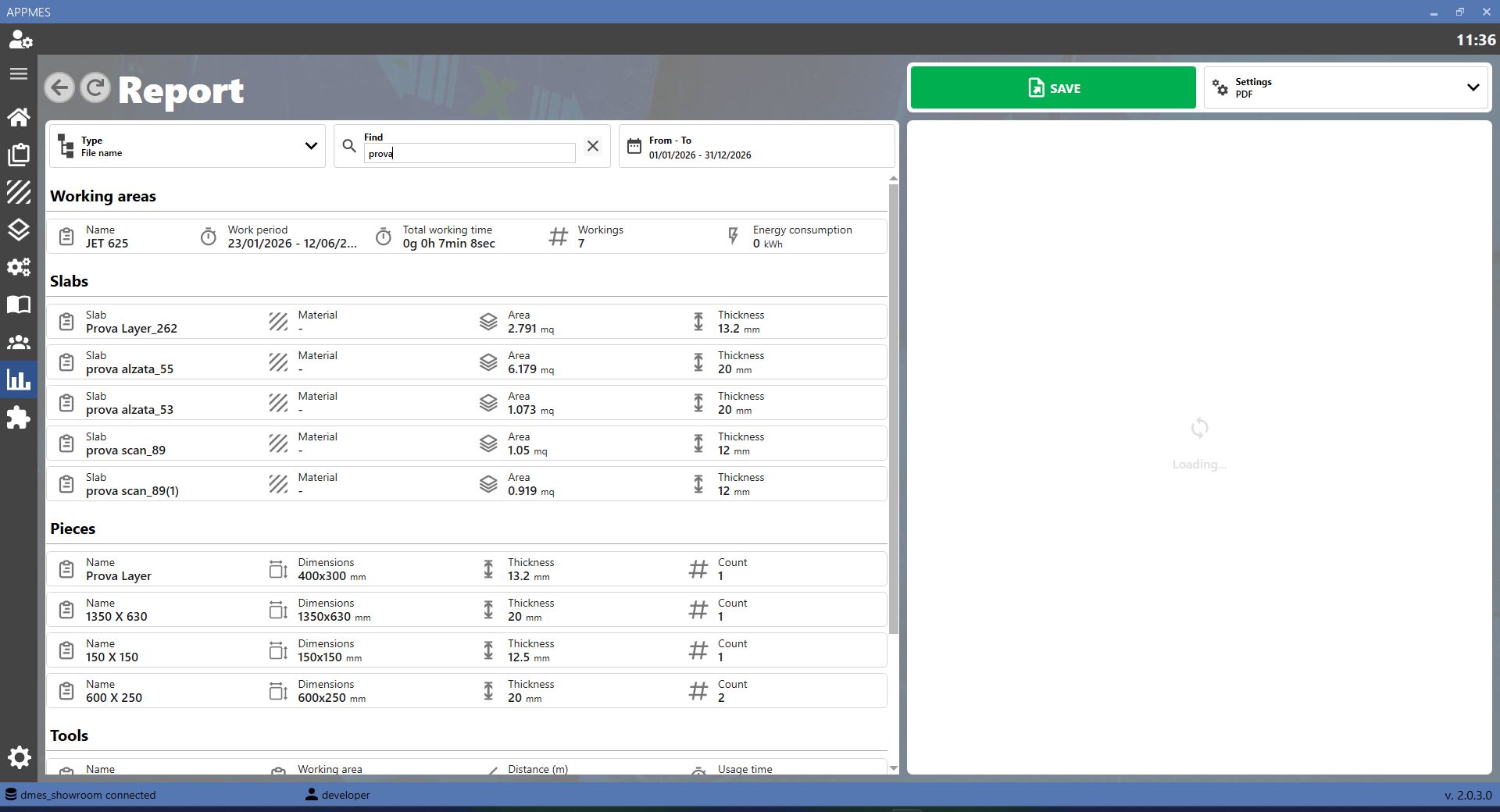

REPORT

This page displays the reports available for each working.


BUTTONS


TYPE
Filters the results by file name, working, customer, block, piece name or material.


DATE
Filters the results by the selected date.


SAVE
Saves the report.


SETTINGS
Allows the report format, such as PDF or CSV, to be selected and the parameters of the file to be saved to be modified.


ZOOM IN
Increases the zoom level of the file preview in the right-hand column.


ZOOM OUT
Reduces the zoom level of the file preview in the right-hand column.


RESET ZOOM
Restores the default zoom level of the file preview in the right-hand column.

WORKING

This section displays statistics for the work cycles recorded by the MES.


REPORT
Saves the report containing work cycle statistics.


DATE
Filters the results by period: today, this week, this month, this year or a custom range.

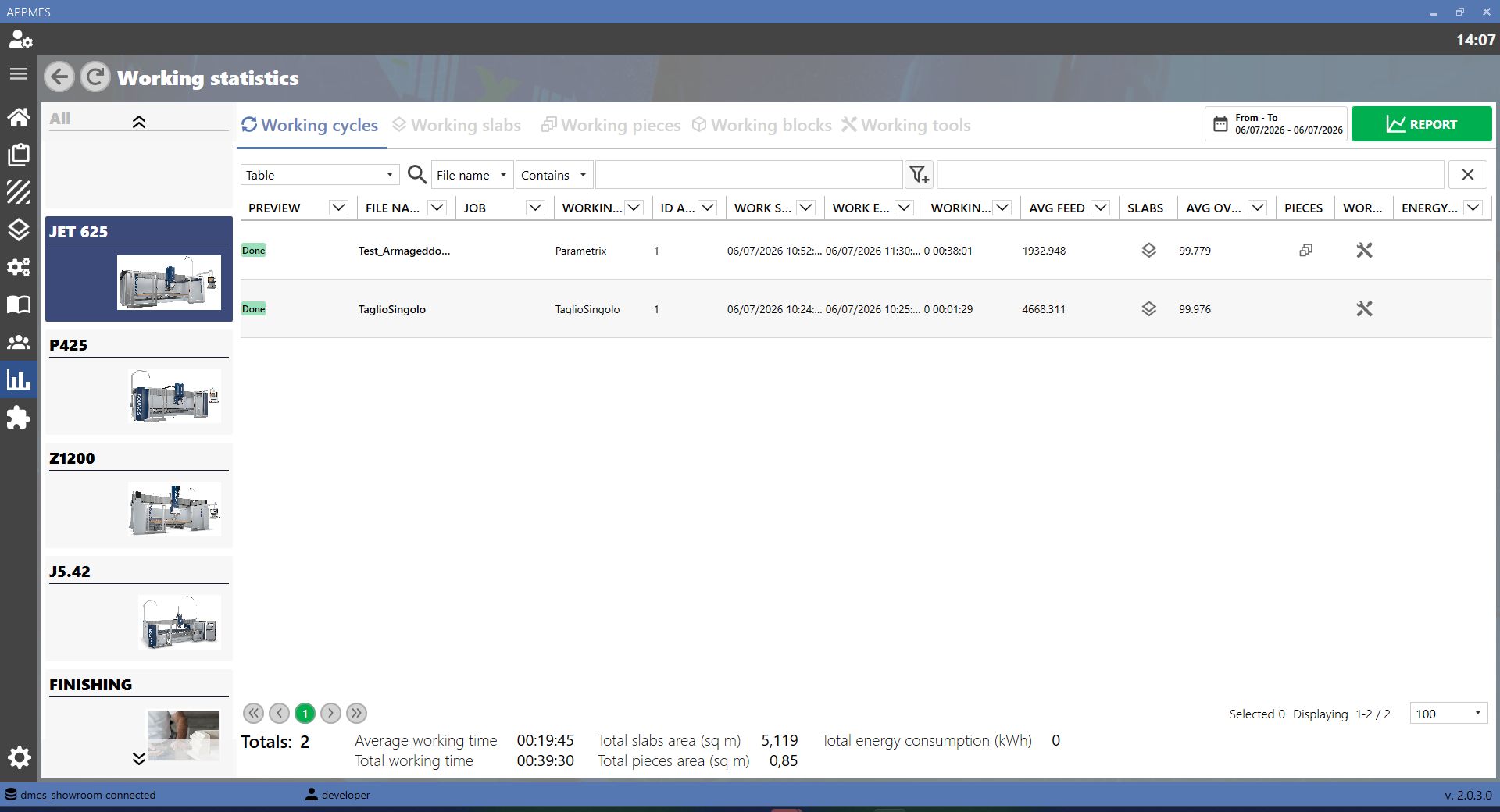

WORK CYCLES

This section displays the work cycle statistics of the selected machine.

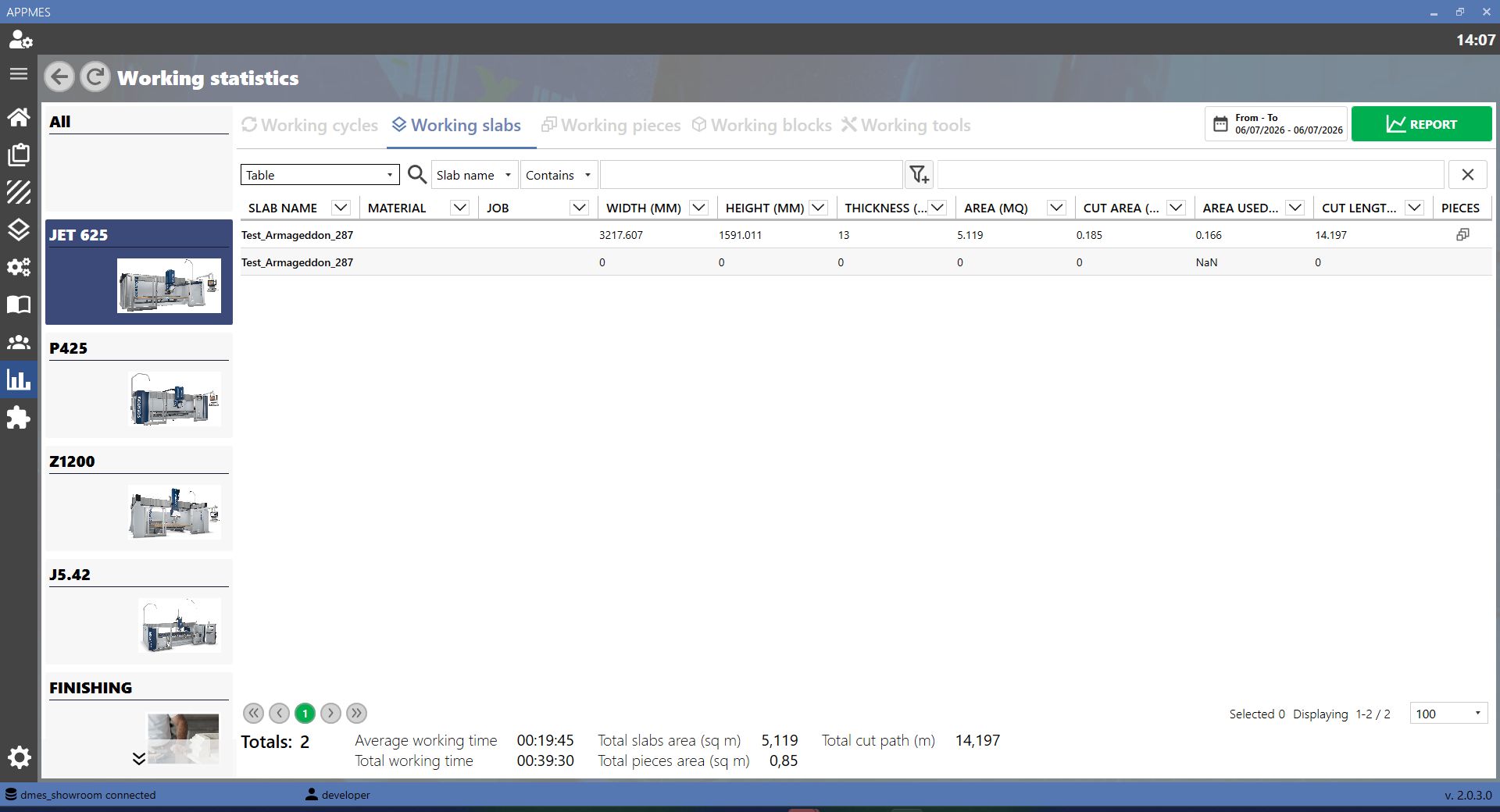

SLAB WORKING

This section displays statistics for processed slabs.

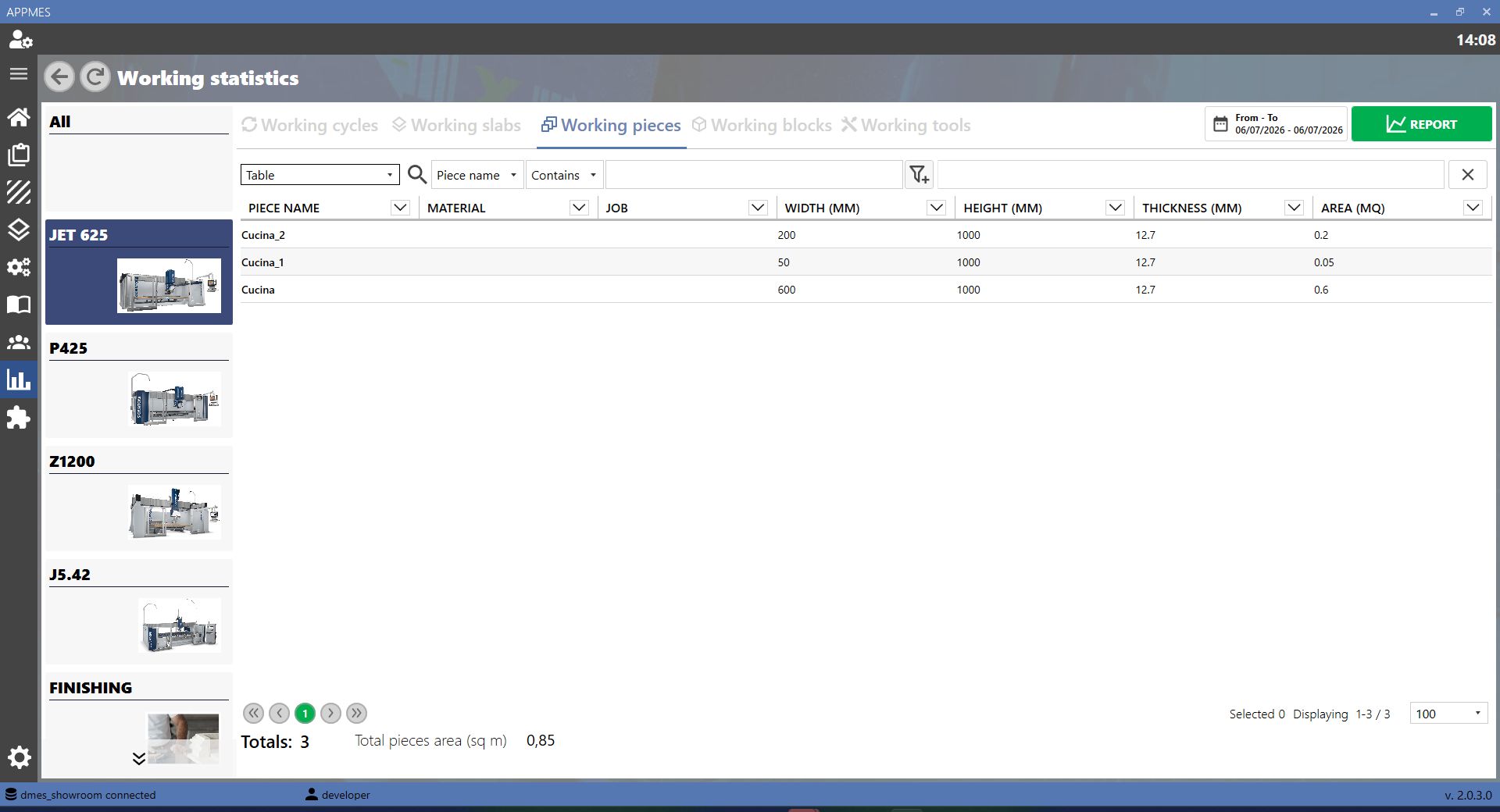

PIECE WORKING

This section displays the characteristics of processed pieces.

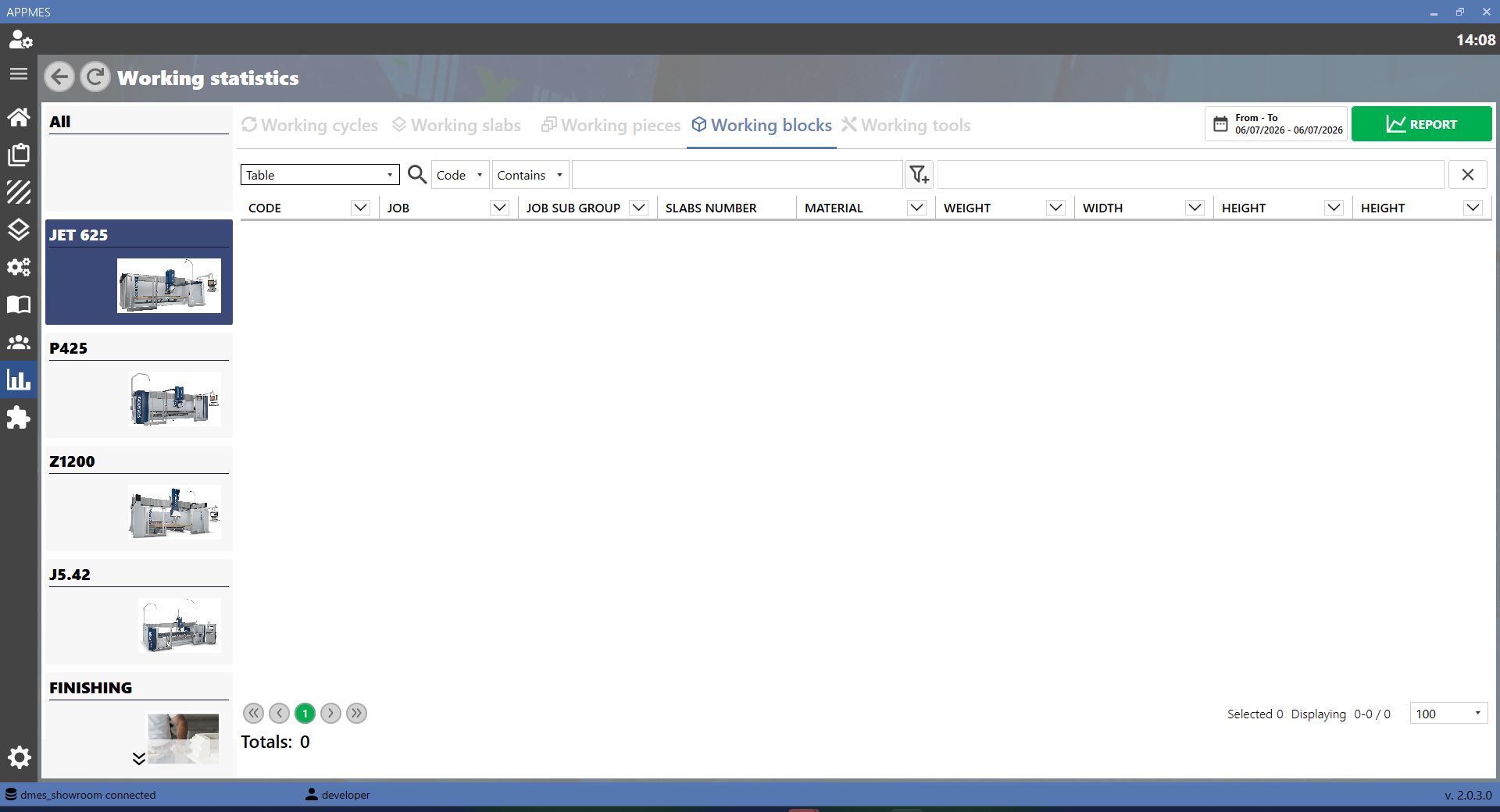

BLOCK WORKING

This section displays statistics for processed blocks.

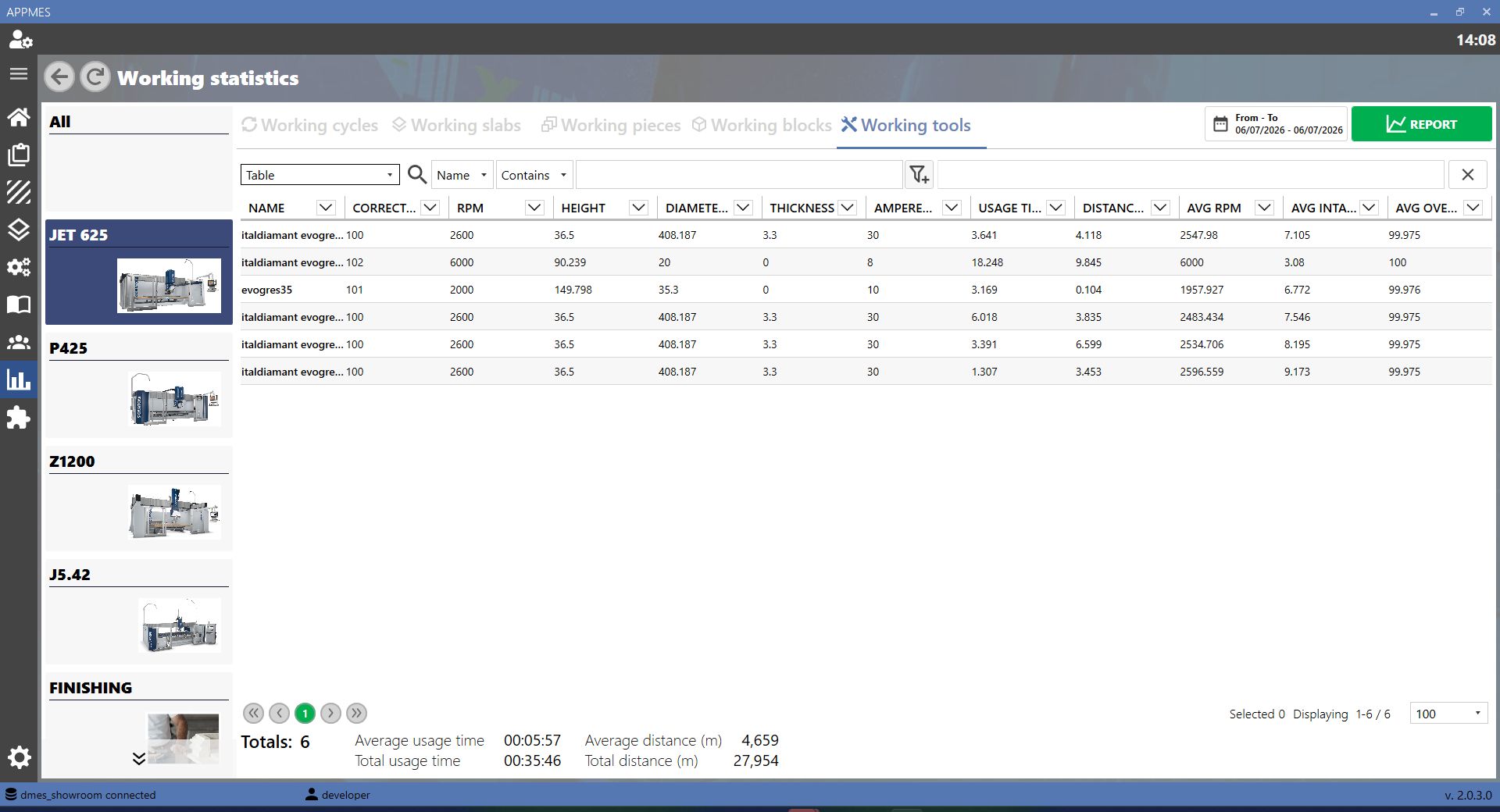

WORKING TOOLS

This section displays statistics for tools used in work cycles.


;
