Machine technical documentation Operational document

DOC3.1.3.3 DYNAMIC TAGS

With this function it is possible to assign configuration's parameters to the Layers of the DXF files.

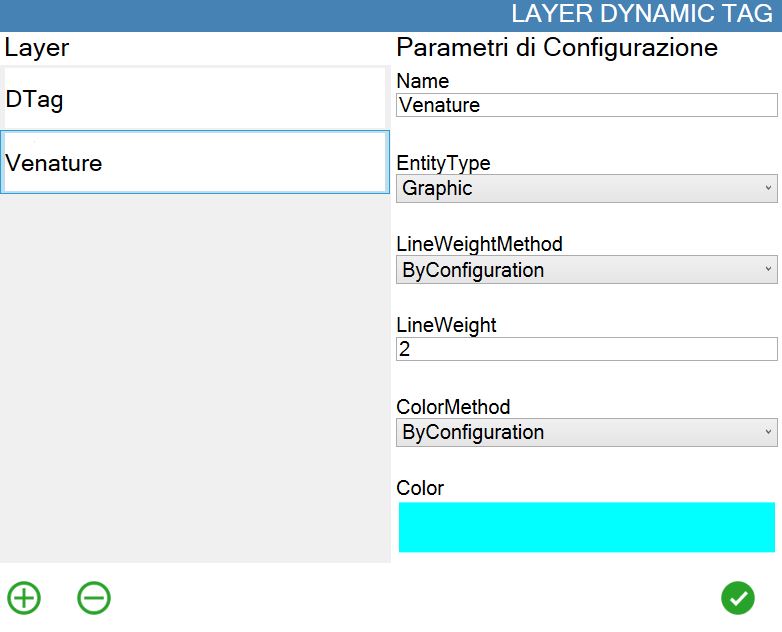

Parameters

The parameters are:

Name

It serves to define and recognize the name of the Layers.

Entity Type

Defines the type of entities that will be visualized.

LineWeightMethod

Allows to choose the mode with which the thickness of the lines is extracted.

LineWeight

Allows to define thickness of the lines belonging to Layer.
This thickness is applied if LineWeightMethod is set in mode 'ByConfiguration'.
Parametrix utilizes by default a thickness of 2mm for the lines.

ColorMethod

Allows to choose the modality with which the color of the Layer is extracted.

Color

Allows to define color of entities belonging to Layer.
This color is applied if ColorMethod is set in mode 'ByConfiguration'.

Buttons

With the following buttons it is possible to add or delete a configuration:


Create configuration
Allows to create a configuration of parameters for the import of a Layer.


Delete configuration
It allows to delete a configuration of parameters for import of a Layer.

Example

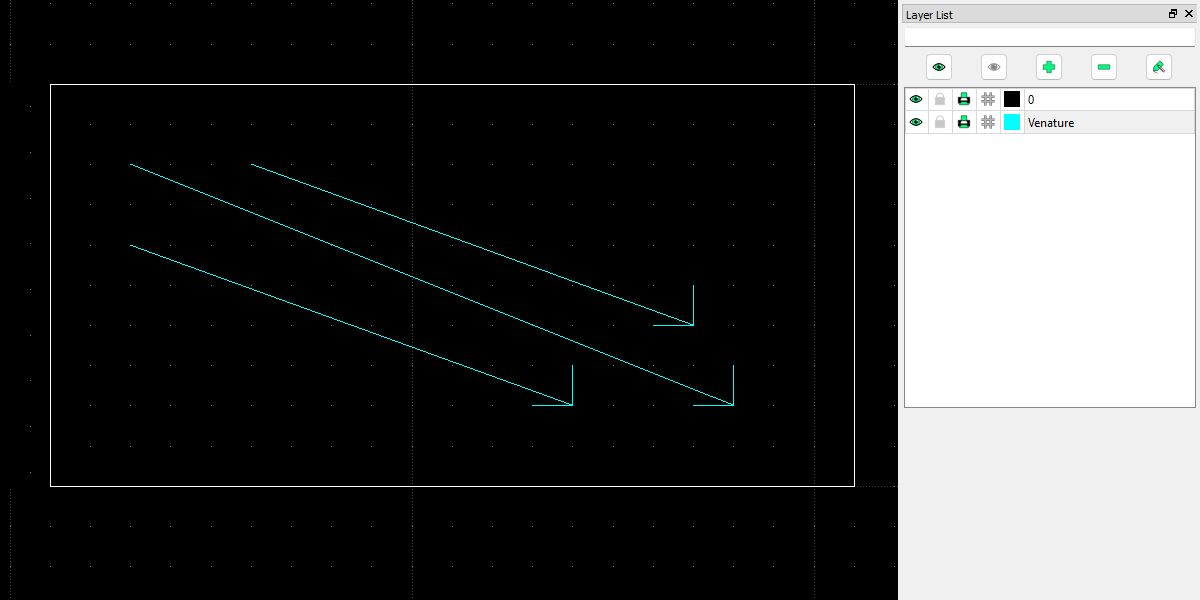

In this example you want to change the characteristics of the elements drawn on Layer 'Venature'.

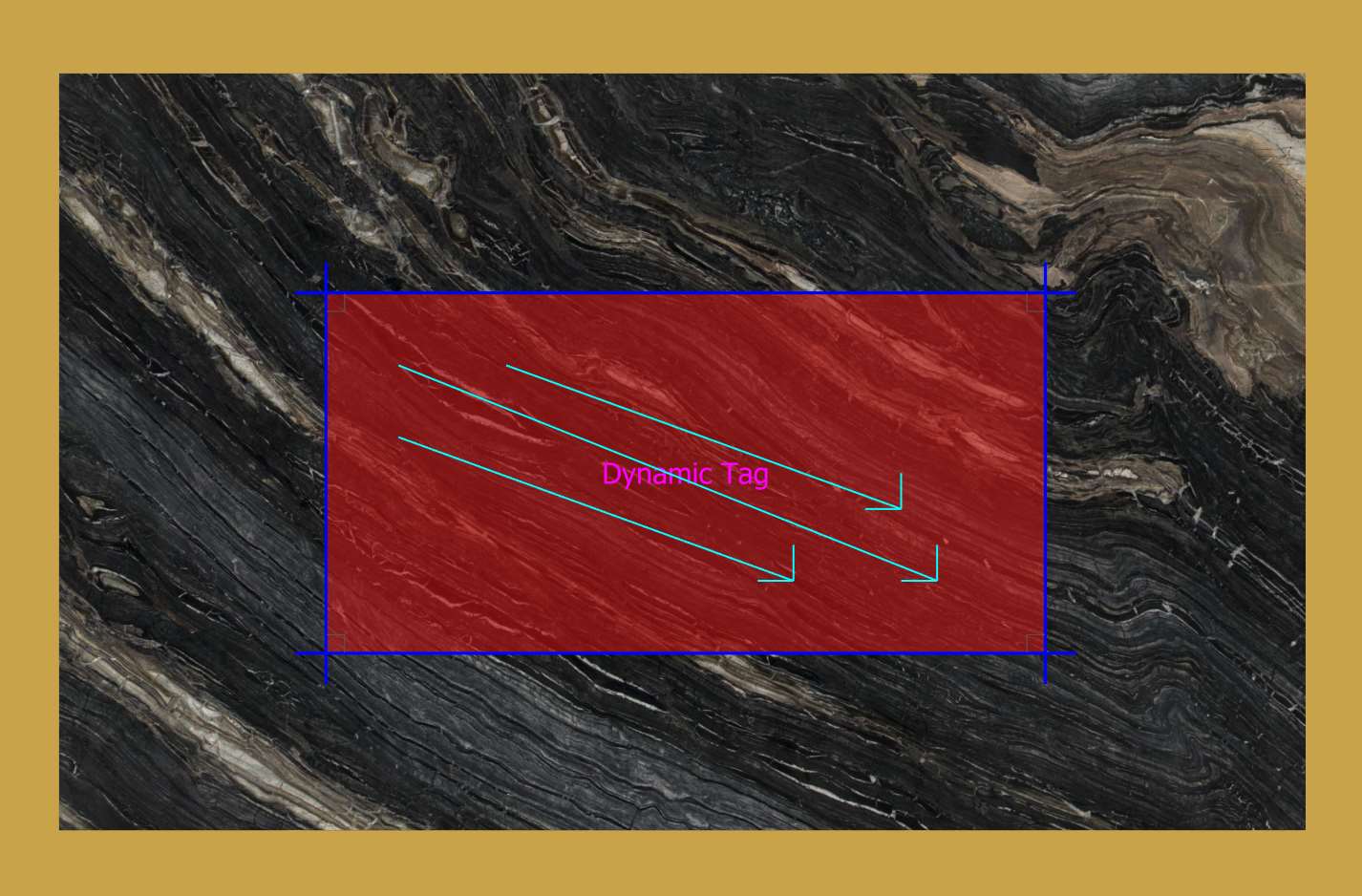

The entities are imported respecting the parameters set in the dedicated window.


;
