The 'Delete' function allows to delete one or more cuts on the figure.

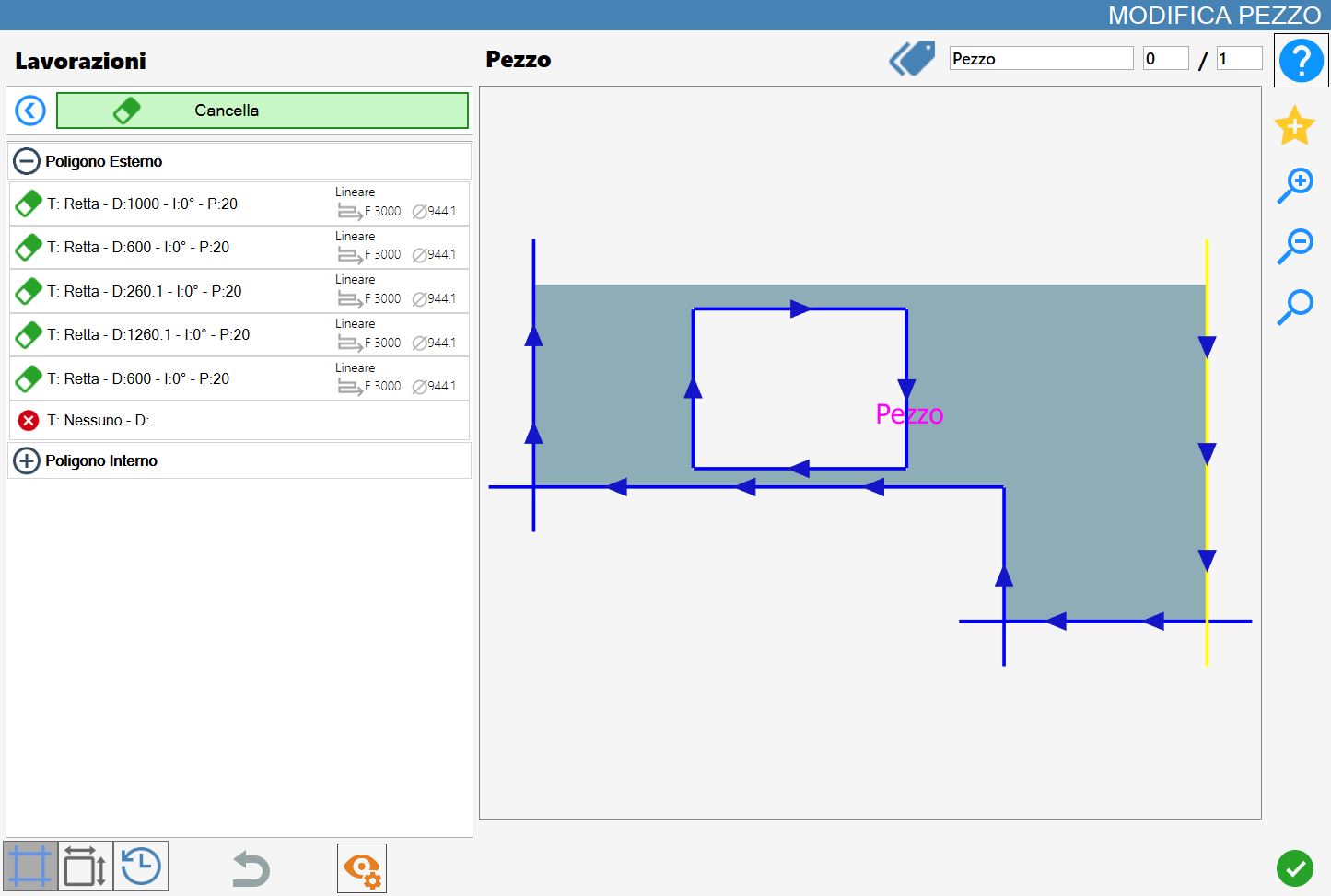

The interface for this function looks like the following image:
Execution of working
It is possible apply processing pressing the button to the left of the suitable cut in the polygon list.
A red icon with an 'X' indicates that the process can not be applied to the desired cut.

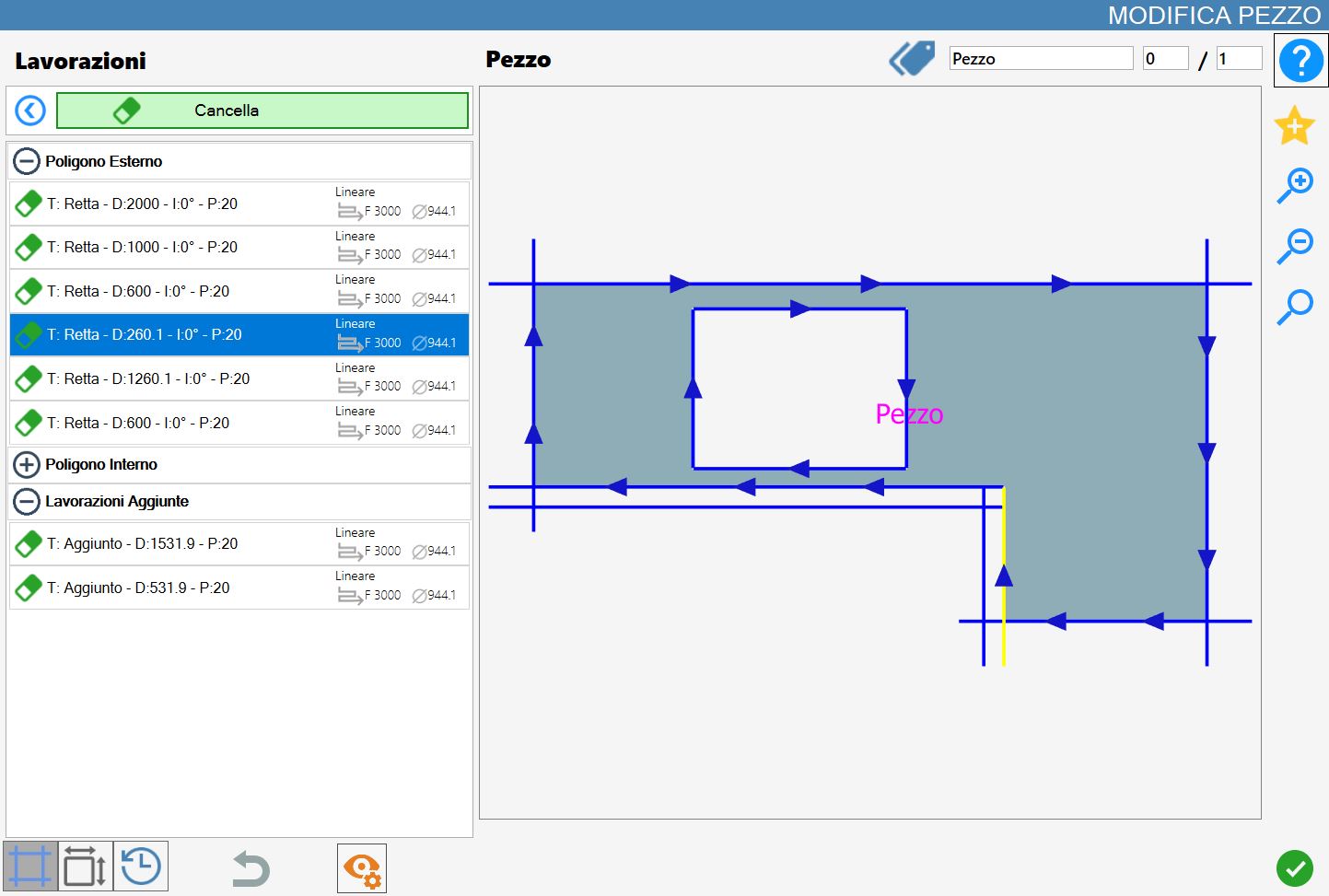

Once deleted one of the cuts you will see the following changes:
When all cuts are removed from the list of additional works, the list itself is automatically deleted.

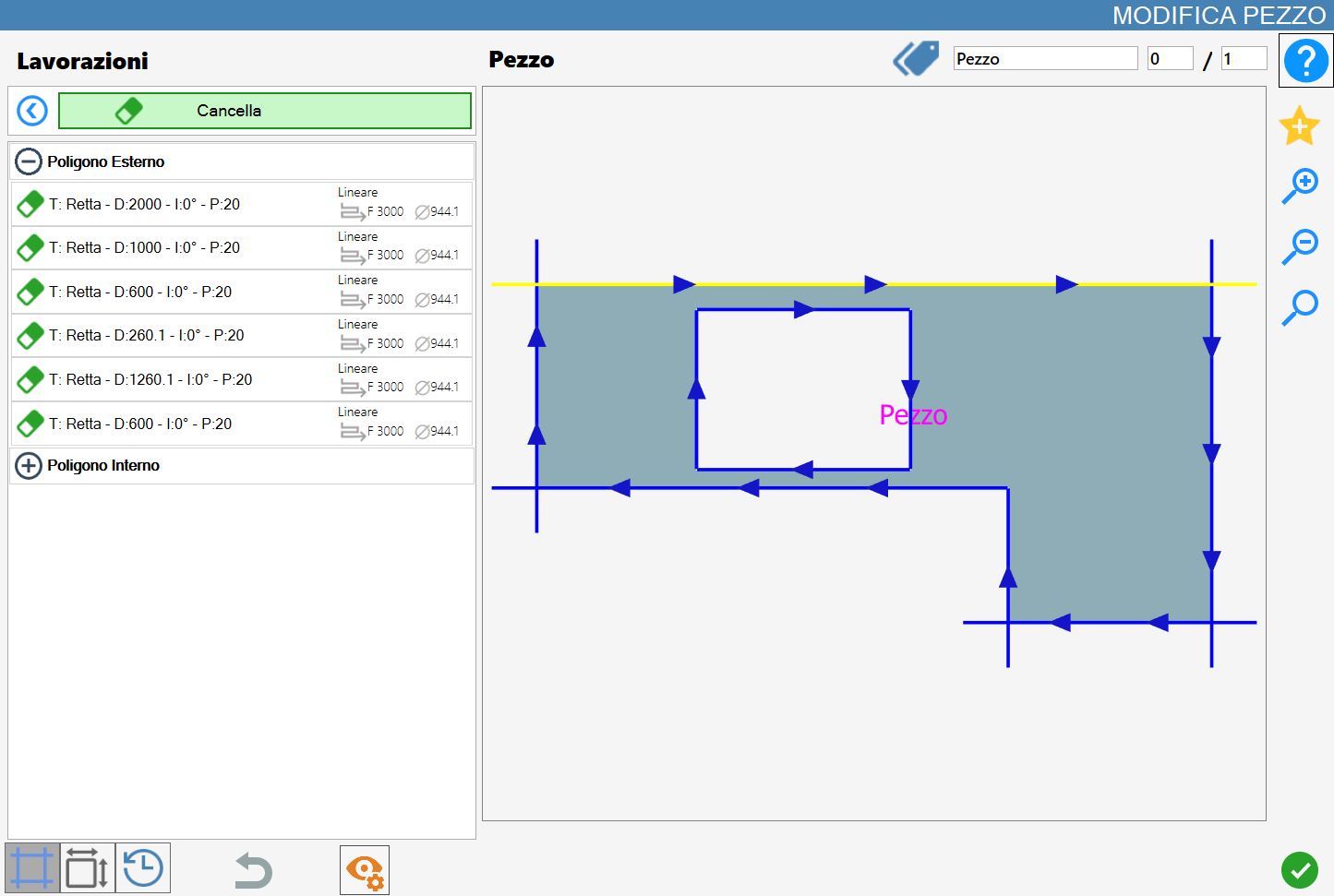

Canceling a cut from the polygon the result will be similar to that shown in the following image:
