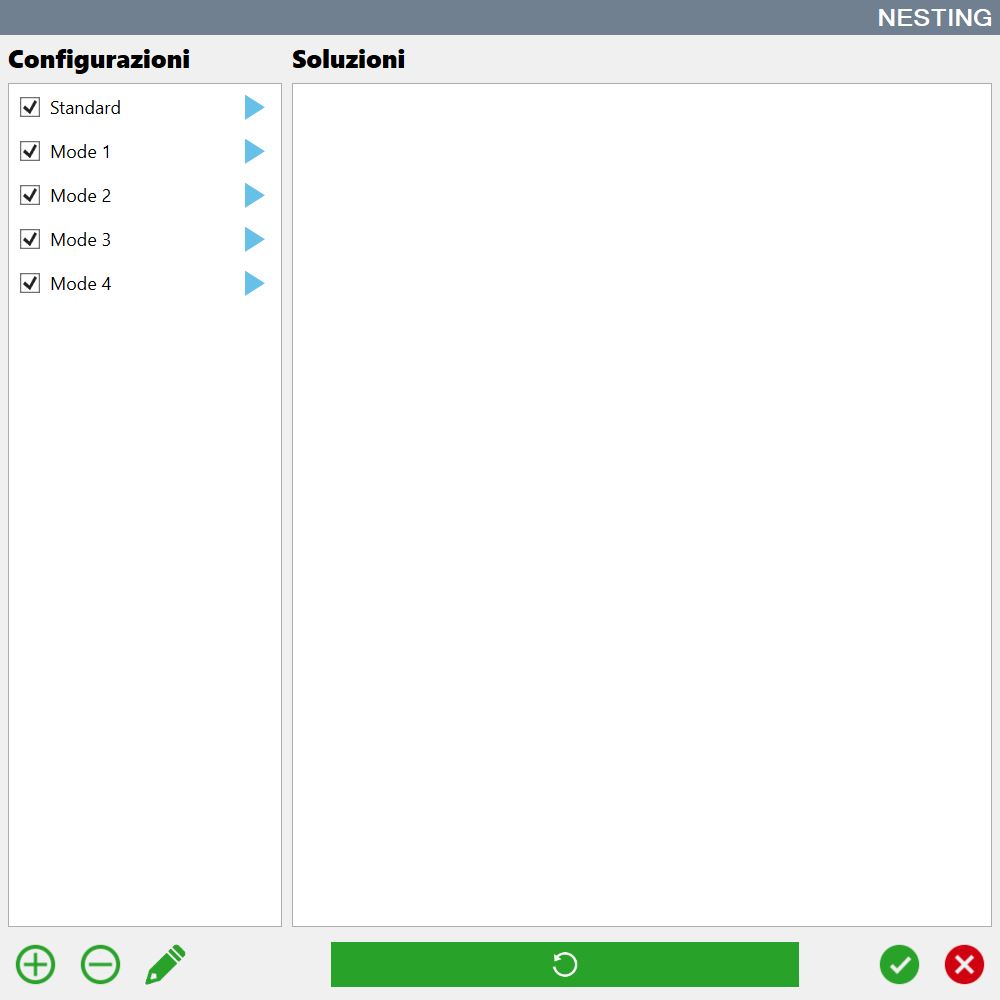

Add
The operator can create a configuration.

Delete
The operator can delete a configuration.

Modify
The operator can change a configuration.

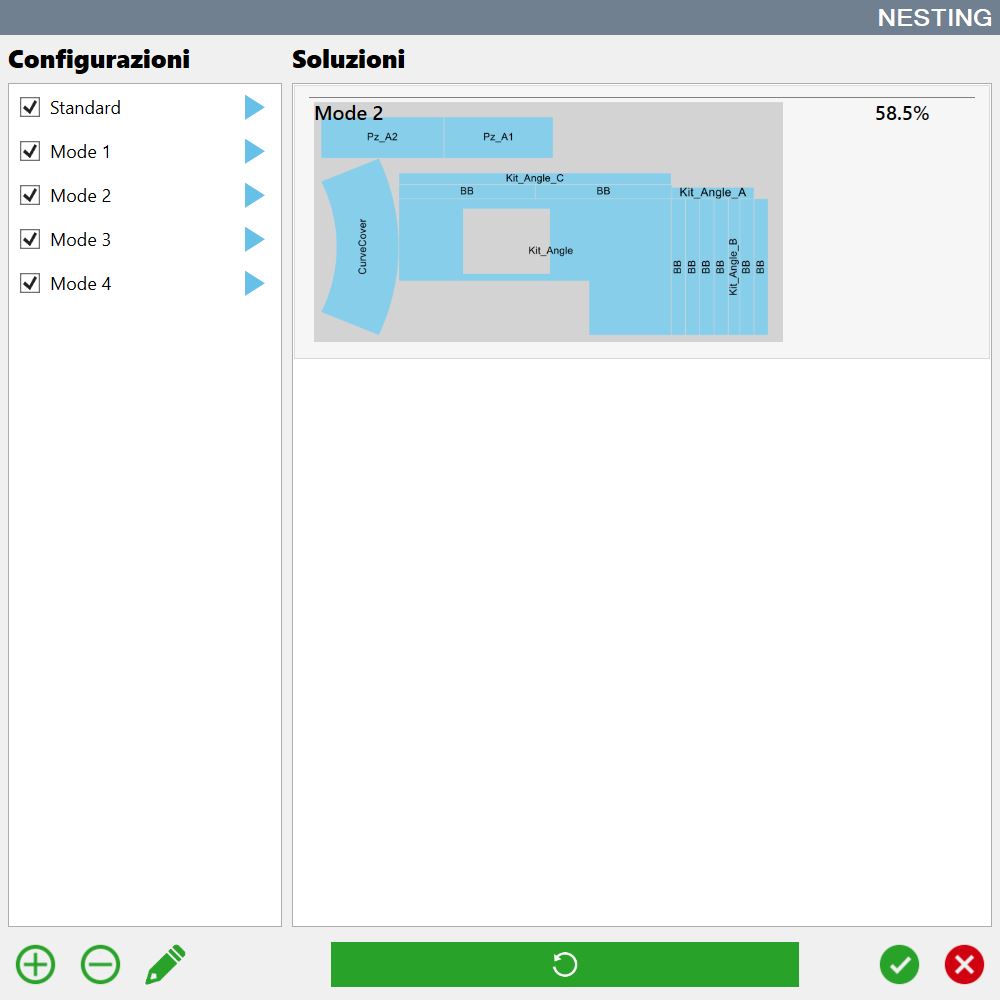

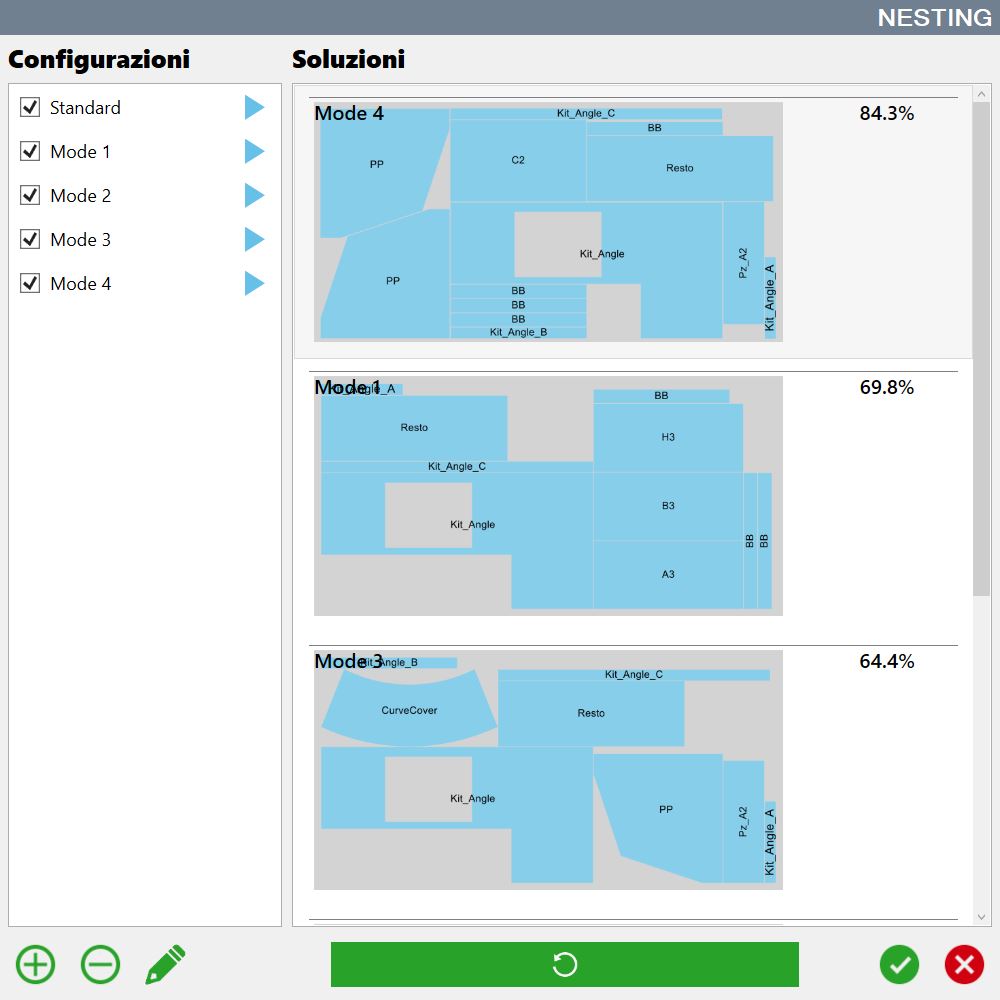

Execution
All configurations are calculated, and the results are inserted into the list on the right.

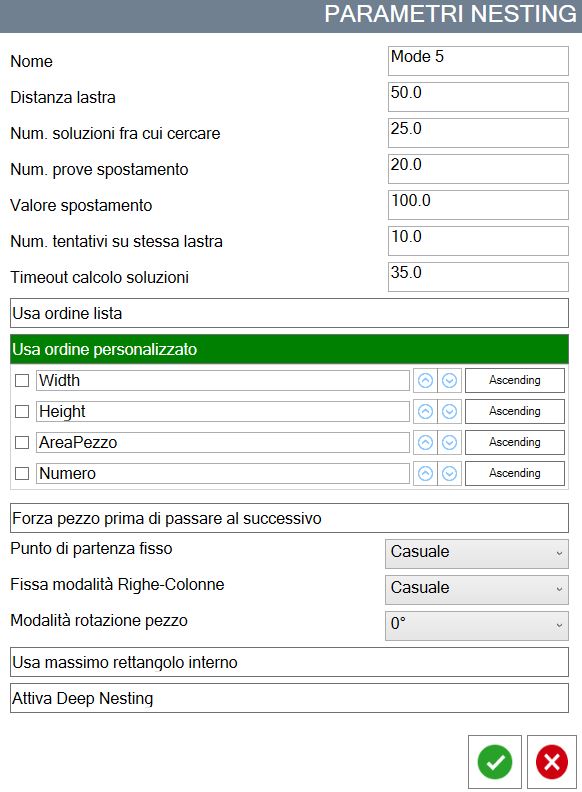

Name

Name of the configuration that appears in the list.

Slab distance

Distance that pieces must maintain from the slab's edge when they are positioned.

Num. solutions search

Number of solutions calculated by Nesting. Among all those calculated, the best is chosen.

Num. displacement tests

Number of tests performed moving the piece if it doesn’t enter the slab's perimeter.

Movement value

Value of which move piece to attempt to insert it inside perimeter of slab.

Num. attempts on the same slab

Number of attempts to insert the piece inside the same perimeter in case it does not enter.

Solutions calculation timeout

Maximum time granted for the calculation of each solution individually.

Use list order

It forces to try to position the pieces inside the perimeter following the order in which they are in the piece list.

Use custom order

Allows to choose the order with which try to position the pieces inside the perimeter of the slab based on some of their properties.
To activate an ordering criterion, enable the corresponding check.
The criteria are respected from top to bottom. This means the pieces are ordered according to the first criterion. If two or more pieces possess the same value for the property linked to the first criterion, they will be ordered according to the next criterion. And so on for each criterion of the list.
For each criterion it is possible to decide if to use an increasing or decreasing order.

Force piece before moving to the next

Allows to choose if to try to position the piece in different places inside the perimeter of the slab, or to pass to the placement of the next one without further attempts.

Fixed starting point

Allows to choose the point of the perimeter from which to start inserting the pieces.

Fix Rows-Columns mode

Allows to choose if during the insertion of the pieces it is necessary to maintain a logic so that they are arranged in rows, in columns or randomly.

Piece rotation mode

Allows to choose the logic with which is possible to rotate the pieces for testing placement inside of the slab perimeter.

Use largest inscribed rectangle

If enabled, the pieces will be inserted inside the rectangle of greater area contained inside the perimeter.
Otherwise, the Nesting will try to arrange the pieces on all available surface of the perimeter.

Activate Deep Nesting

If disabled, the pieces are inserted on the slab to optimize the use of the material handling system with suction cups for the resolution of collisions.
If enabled, it allows to search for more complex pieces combinations, whose arrangement might collide with the use of the material handling system.
