The operator can modify the positioning of the pieces on the bench through interaction on the work area.

Functions

	Multiple selection With this function you can select or deselect more pieces at a time.
	Select all With this function you can select or deselect all the pieces present on the work area simultaneously.
	Remove pieces Allows to remove the selected pieces from the work area.
	Move pieces Opens a panel through which it is possible to move the selected pieces of established distances.
	Rotate pieces Opens a panel through which is possible rotate the selected pieces with established angles.
	Cancel operation Cancel the last operation carried out.
	Magnetize the pieces Functionality that allows to attach two cuts to each other.
	Miter Cut Opens a panel that allows to tilt a cut on a piece in the working area.
	Edit commercial piece Opens a panel through which you can change dimensions of a commercial piece.

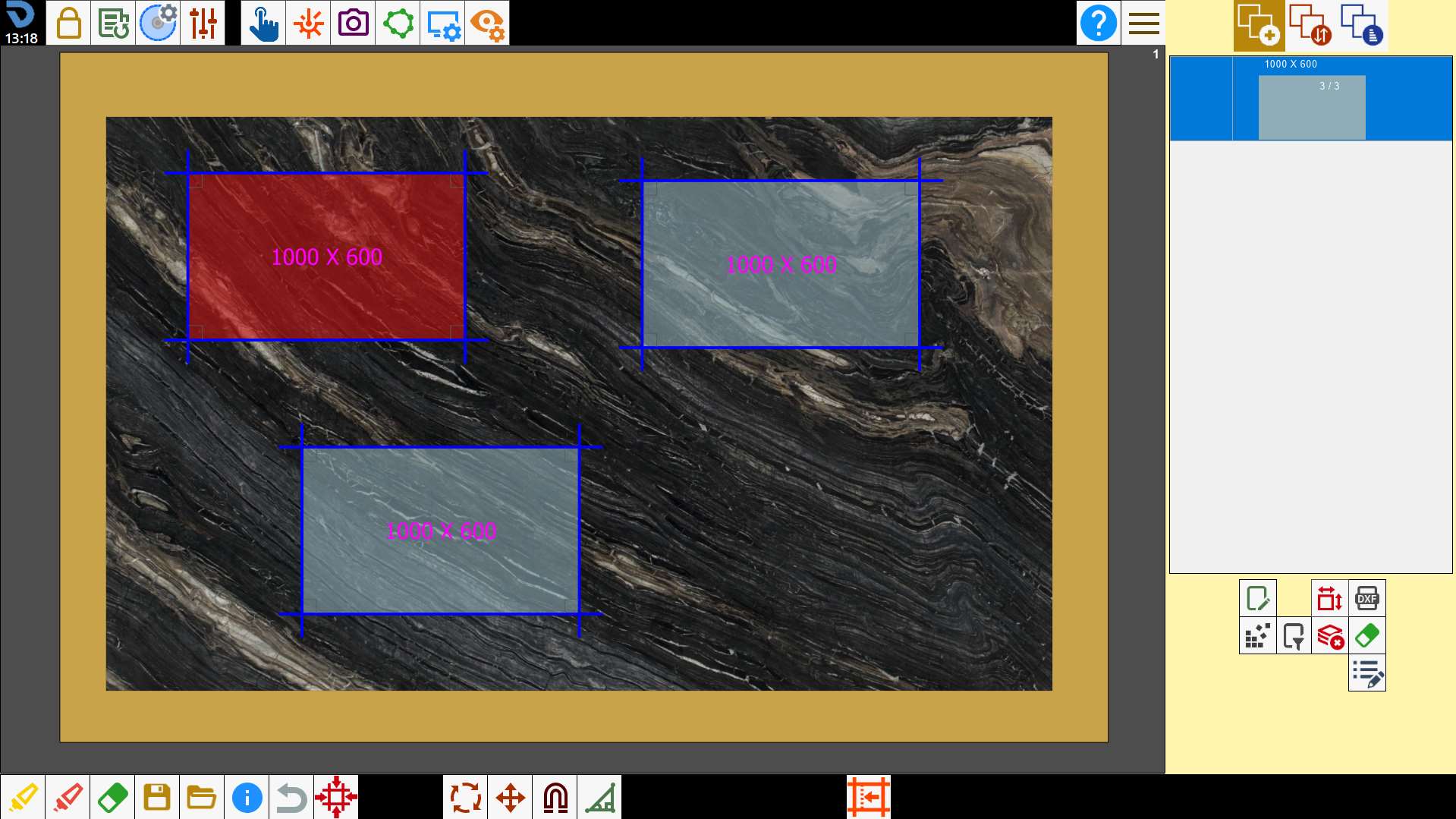

Select the pieces

To select a piece, press inside it. The background of the pieces will be blue when not selected, red when selected.

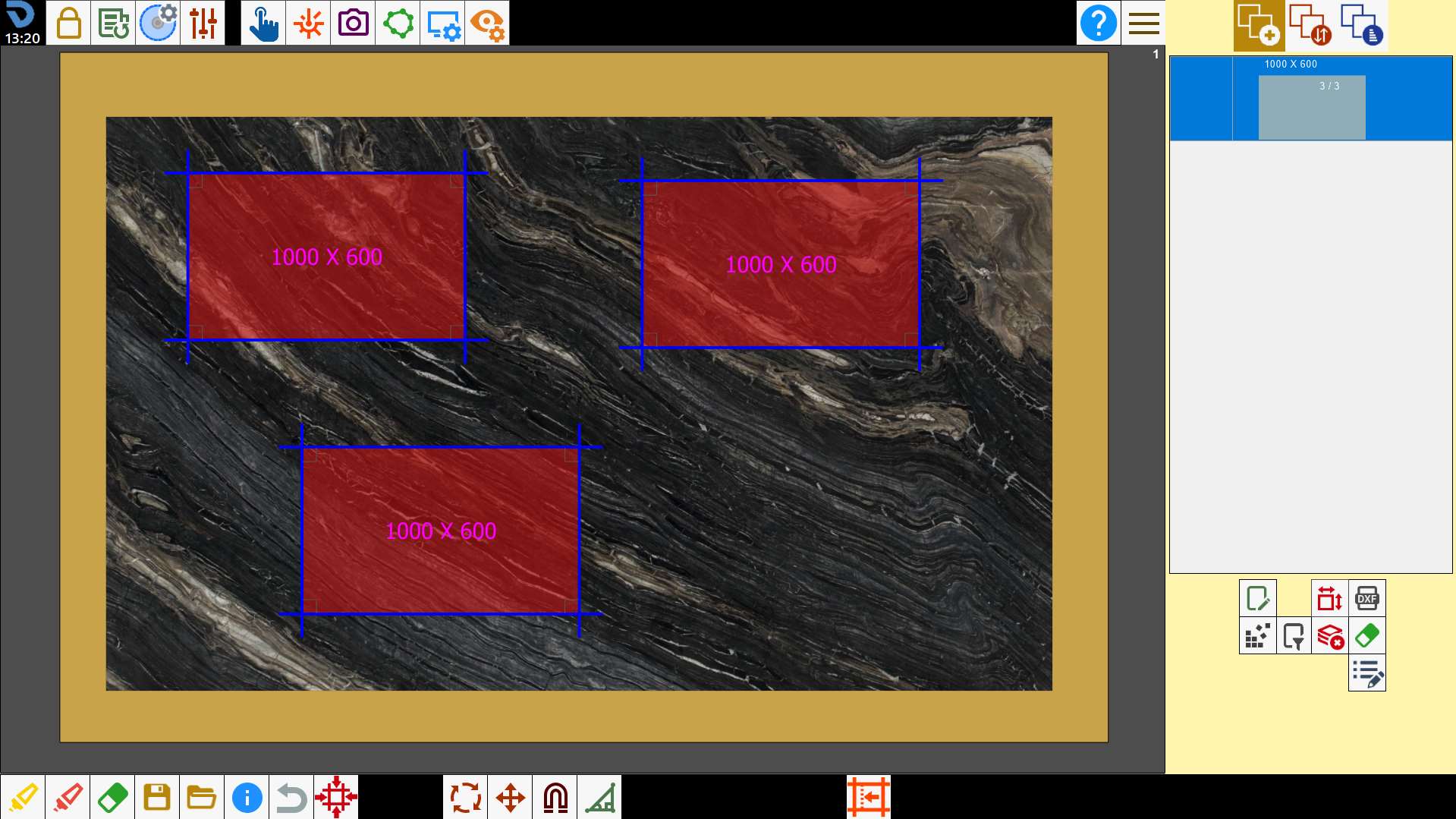

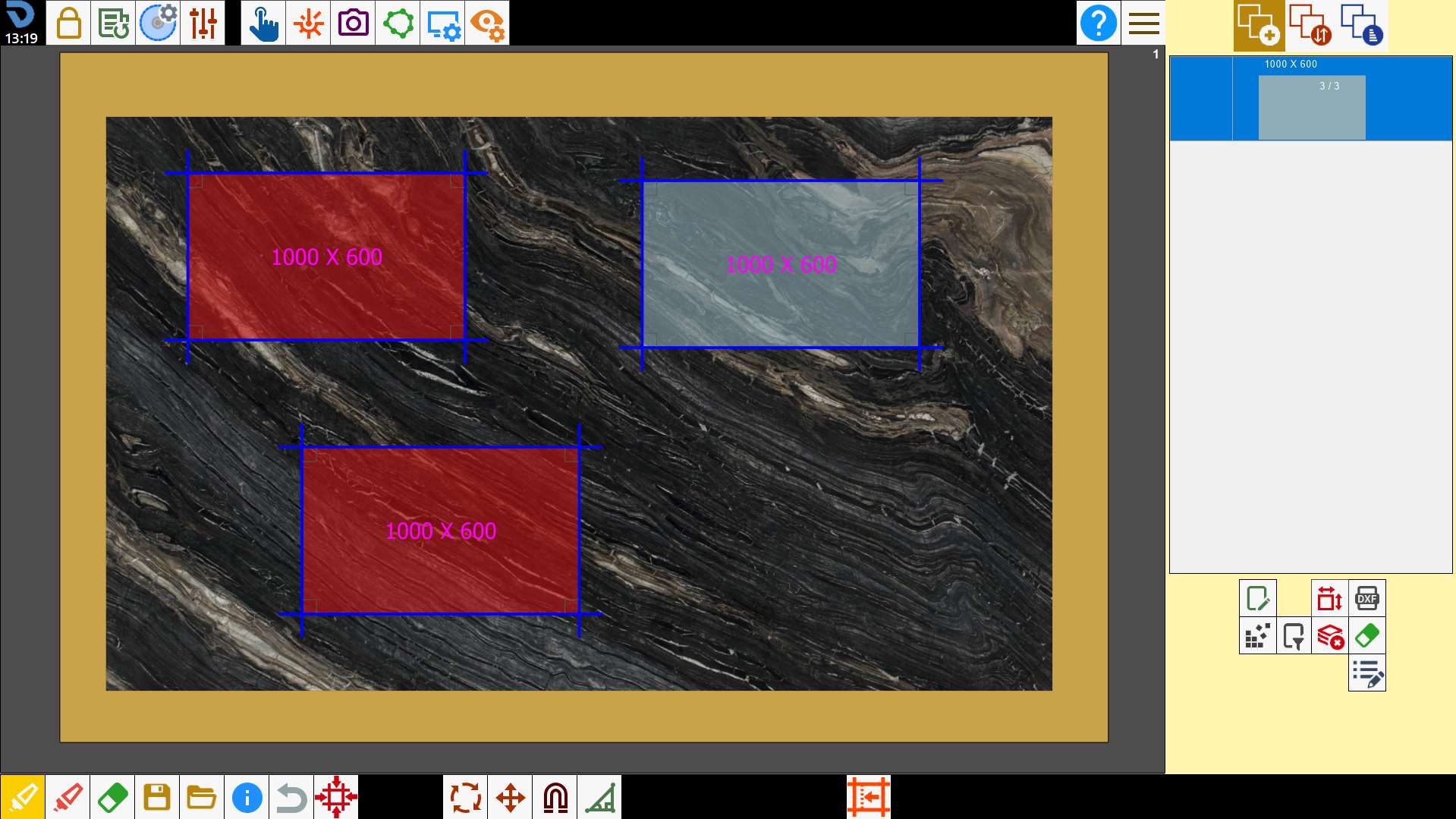

Multiple selection

Pressing the button activates the multiple selection mode. In this mode it will be possible to select multiple pieces simultaneously. To deselect a piece, press inside a perimeter already selected.

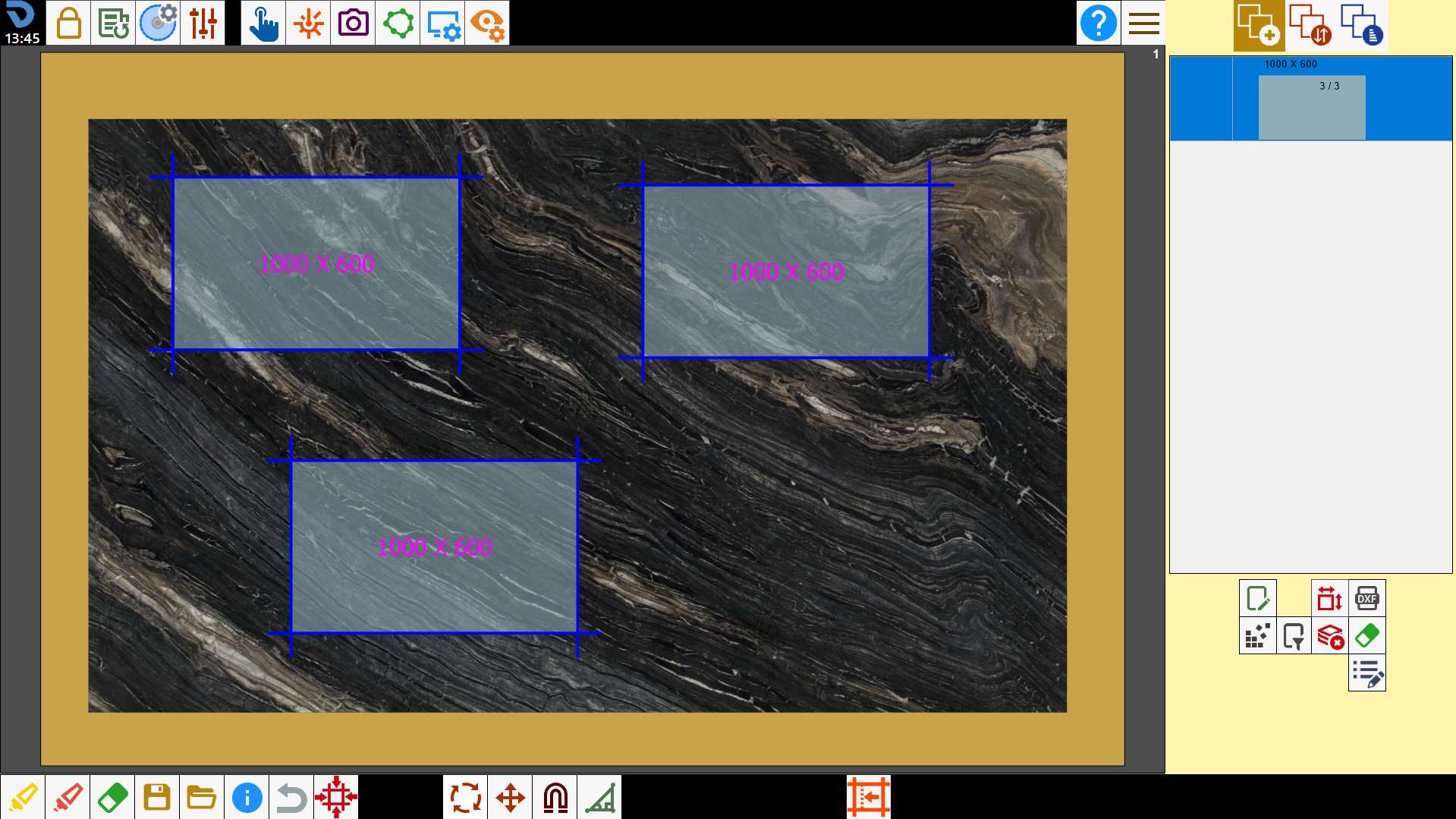

Select all pieces

With this button is possible to select or deselect simultaneously all pieces present on the working area.

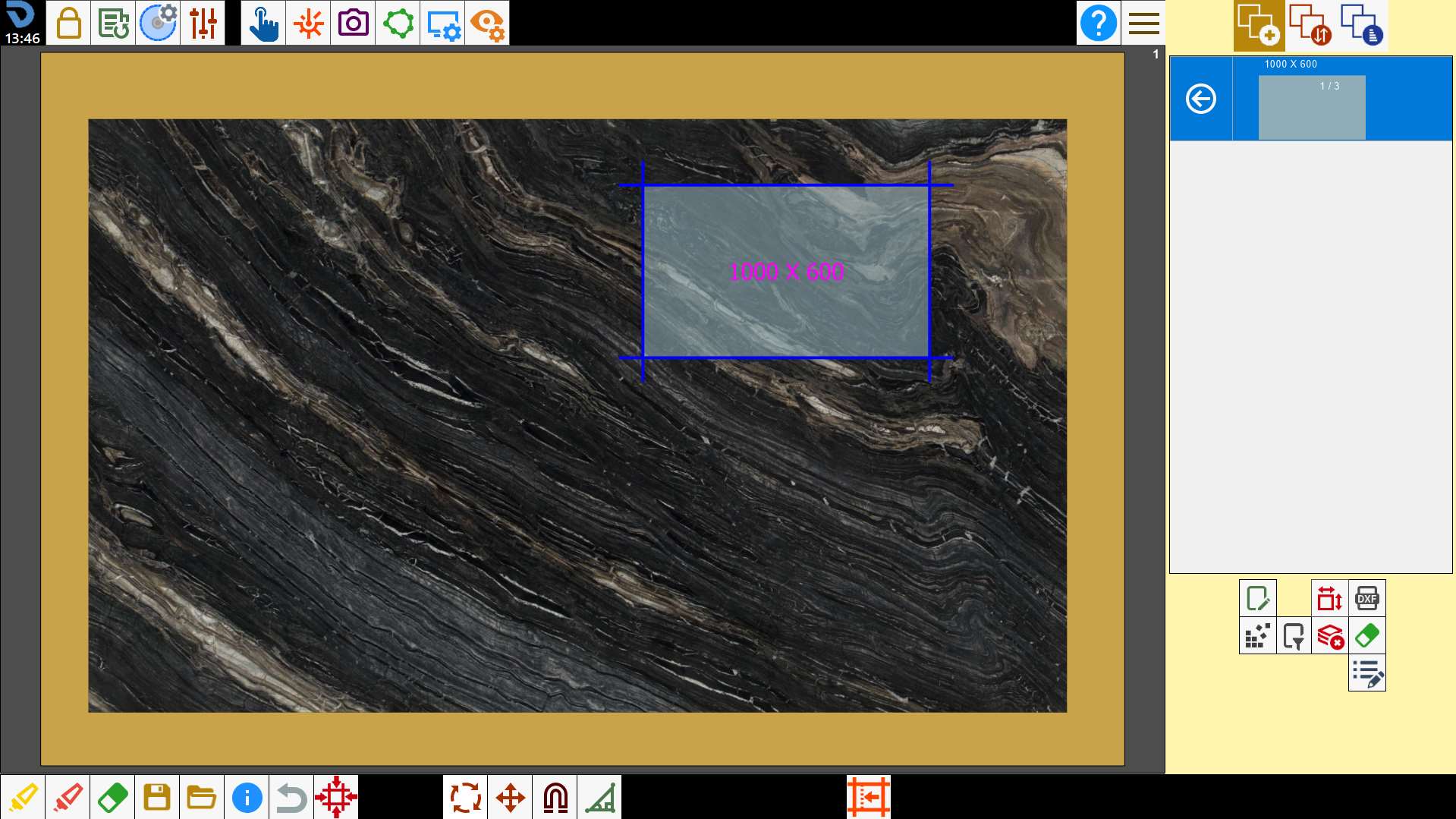

Remove the pieces

Pressing the button, the selected pieces are removed from the working area and are inserted again into the pieces list, to make them available at a second moment.

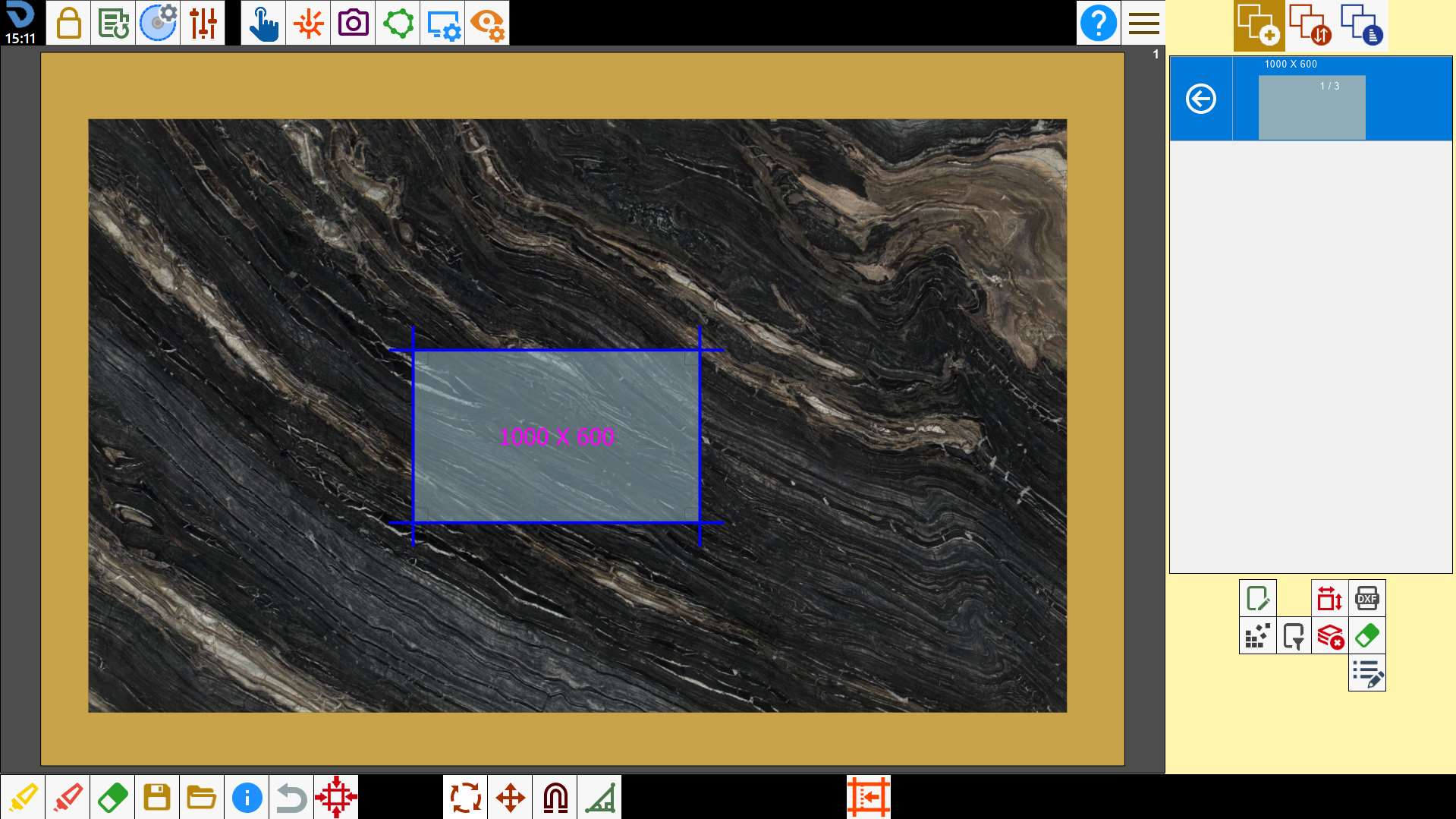

Move pieces

To move the selected piece, hold inside of the perimeter and drag it on the working area.

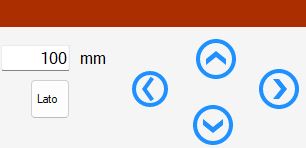

Alternatively it is possible to use the panel for the shift with directional arrows.

Buttons

	Directional arrows Buttons that allow the piece's shift in the different directions. The shift distance is settable via the text box located on the left.
	Move along the axis of the side Allows to execute parallel or orthogonal movements with respect to the side of the piece that is selected. If more pieces are selected simultaneously they will move all consistently with respect to the selected side.

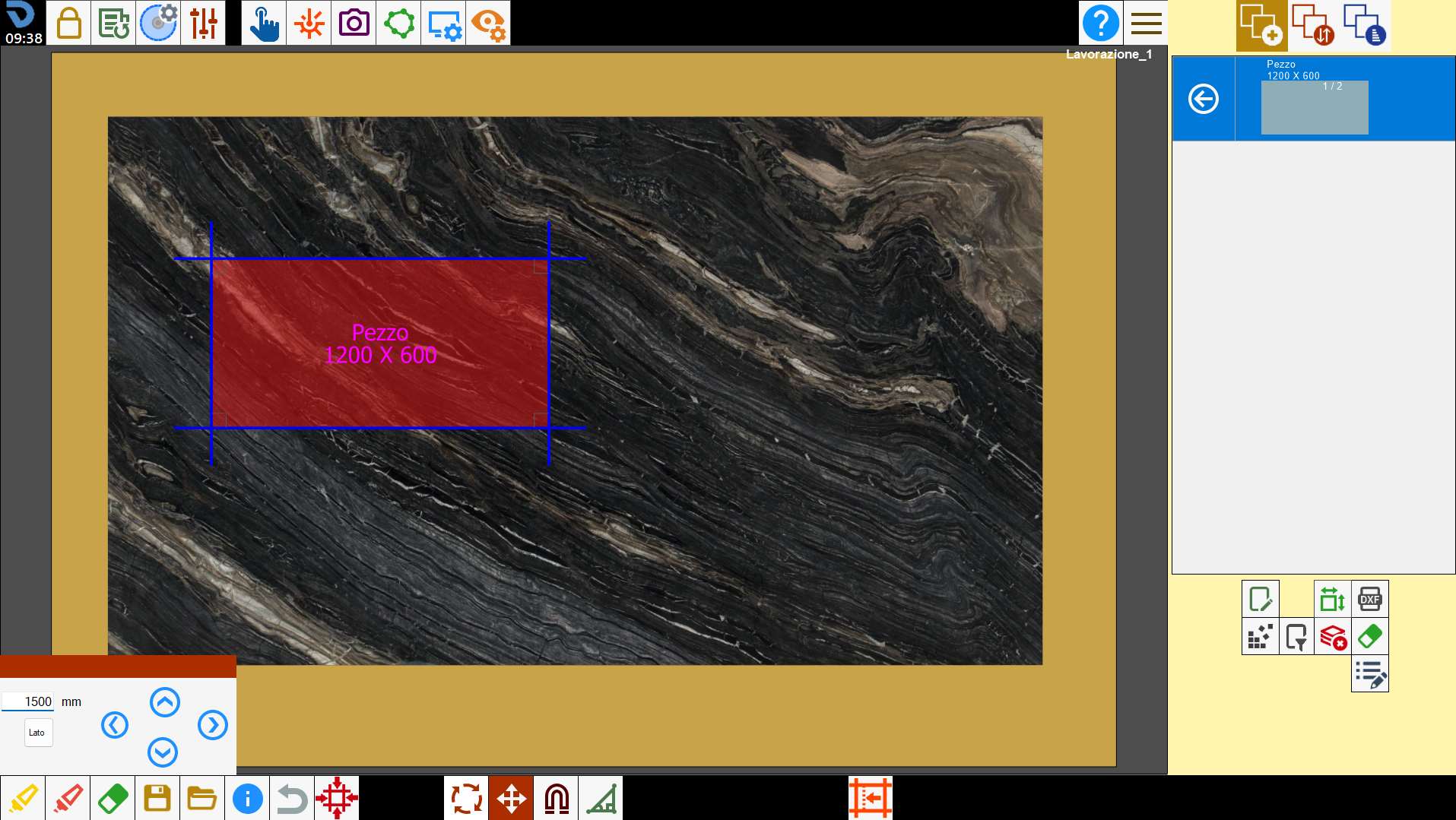

Move pieces along the classic axes

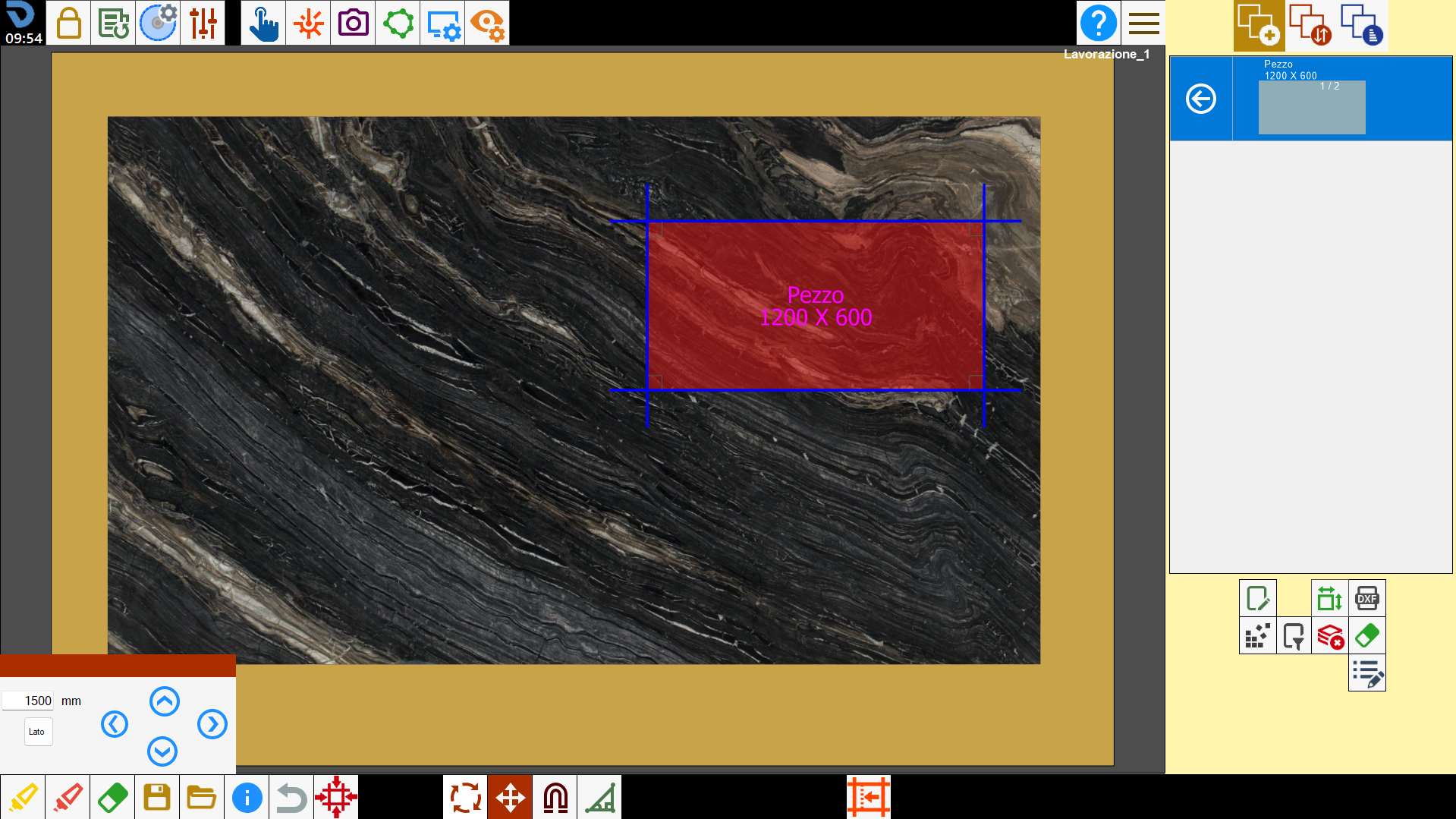

You want to apply to the piece a displacement of 1500 mm towards left.

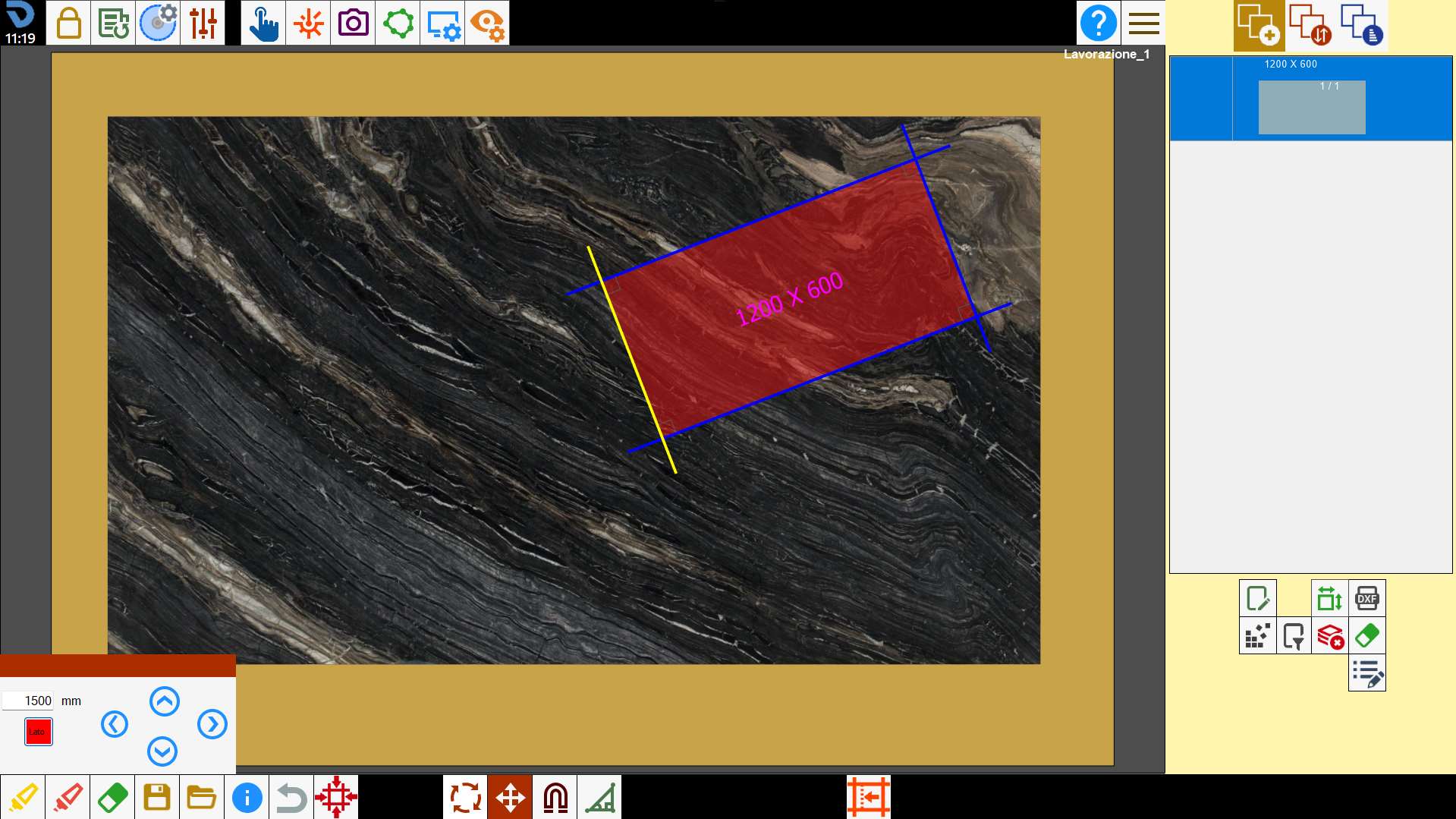

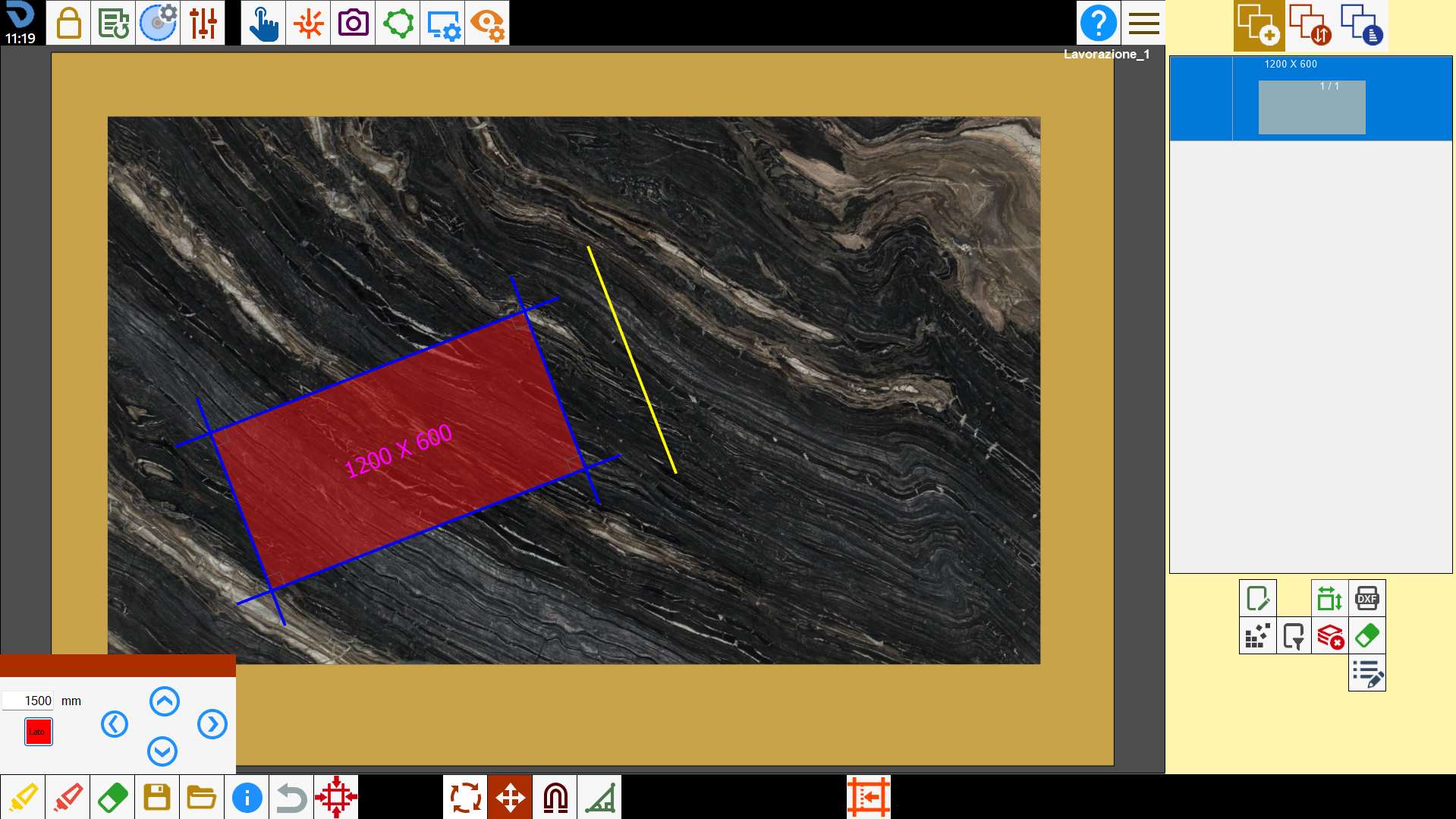

Move the pieces along the side axis

You want to apply to the piece a displacement of 1500 mm towards the left with respect to the axis of the piece's side.
To do it the button related must be activated.

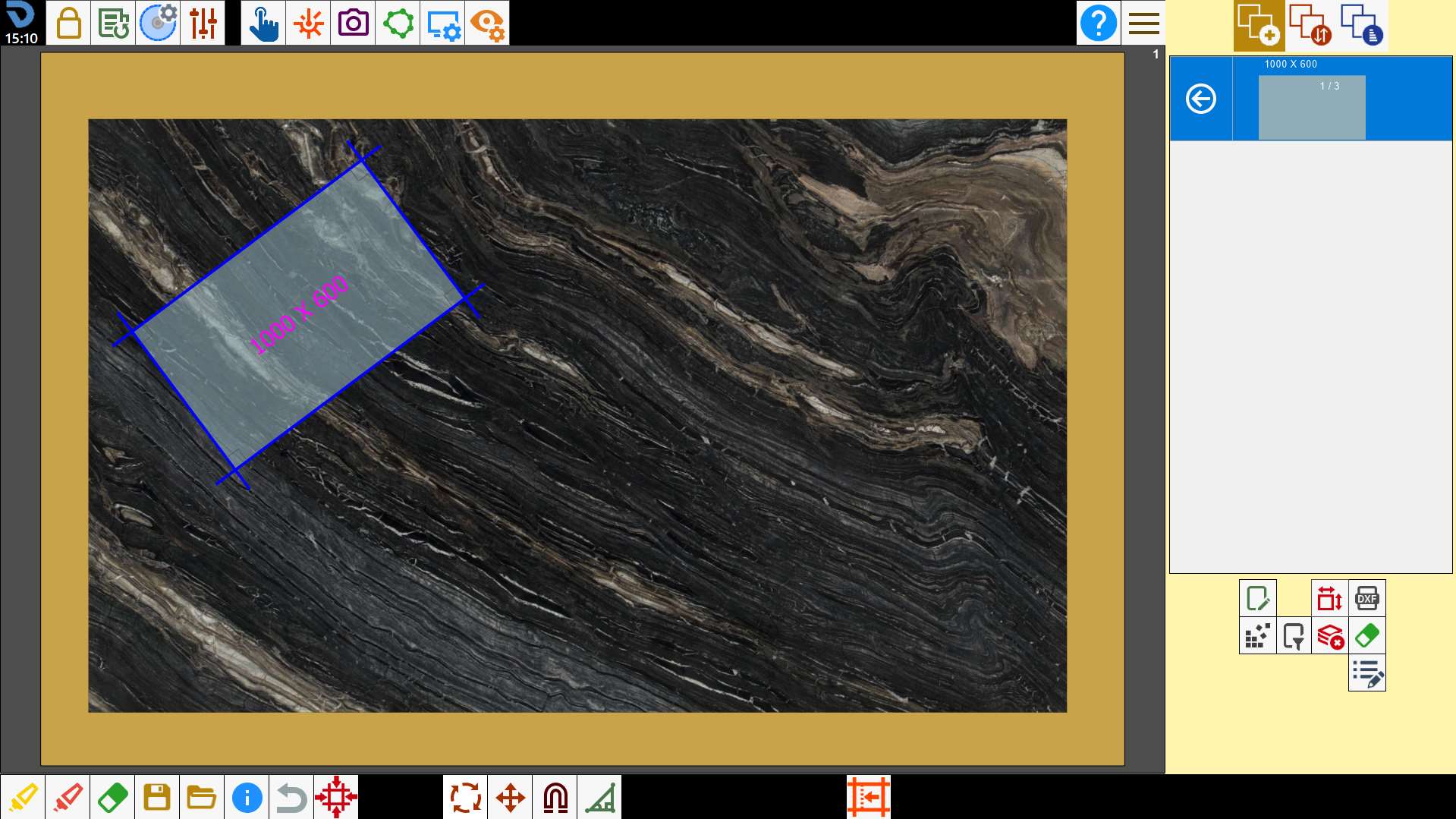

Rotate the pieces

To rotate selected pieces, hold outside of perimeter and drag them on the work area.
Alternatively it’s possible to use the panel for the rotation with determined angles.

Buttons

	Clockwise rotation Allows to rotate the piece clockwise by the number of angles indicated by the text box below.
	Counterclockwise rotation Allows to rotate the piece counterclockwise of the number of angles indicated by the text box below.
	Rotation 90_ Allows rotate piece of 90_ in clockwise sense.

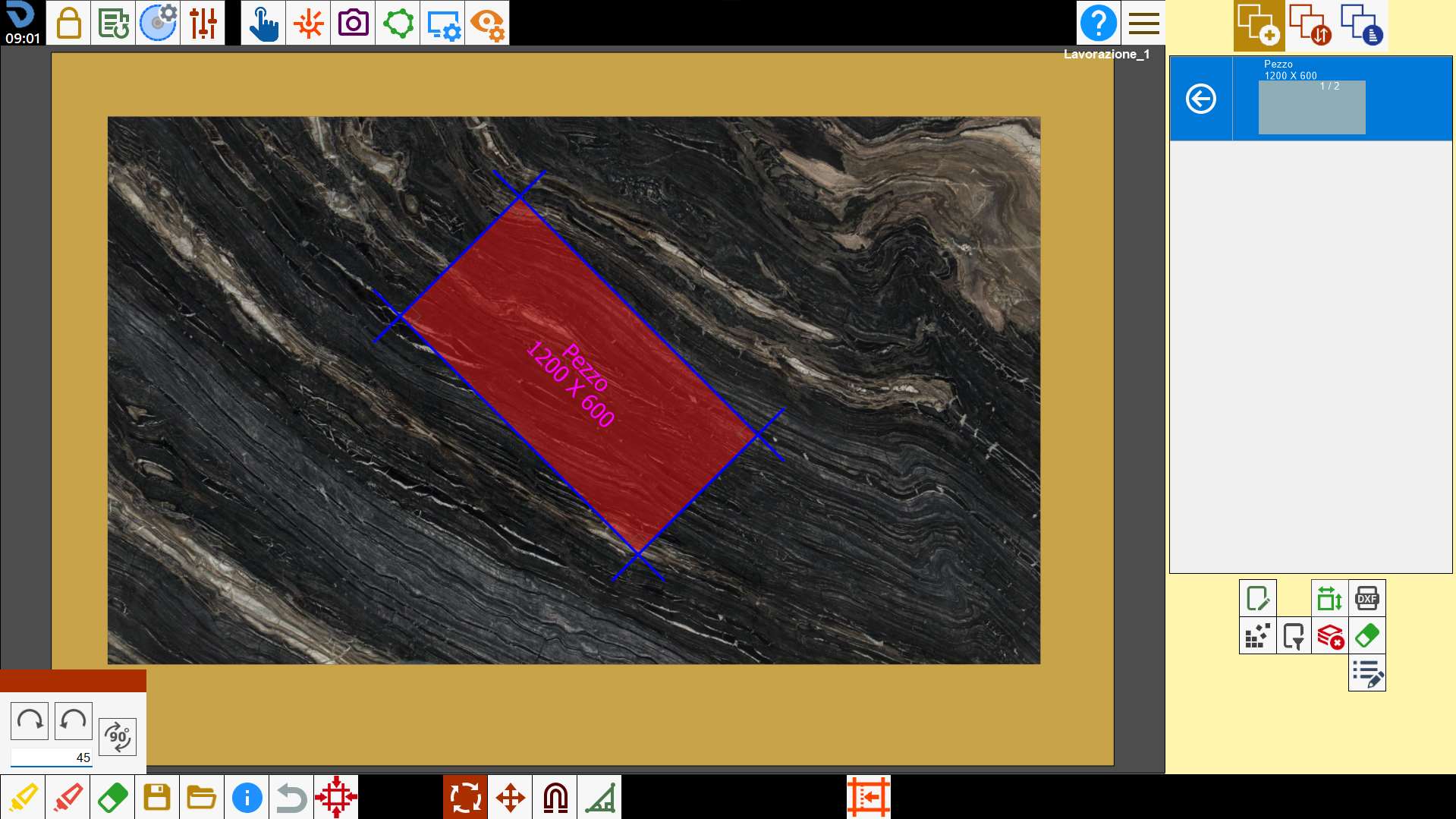

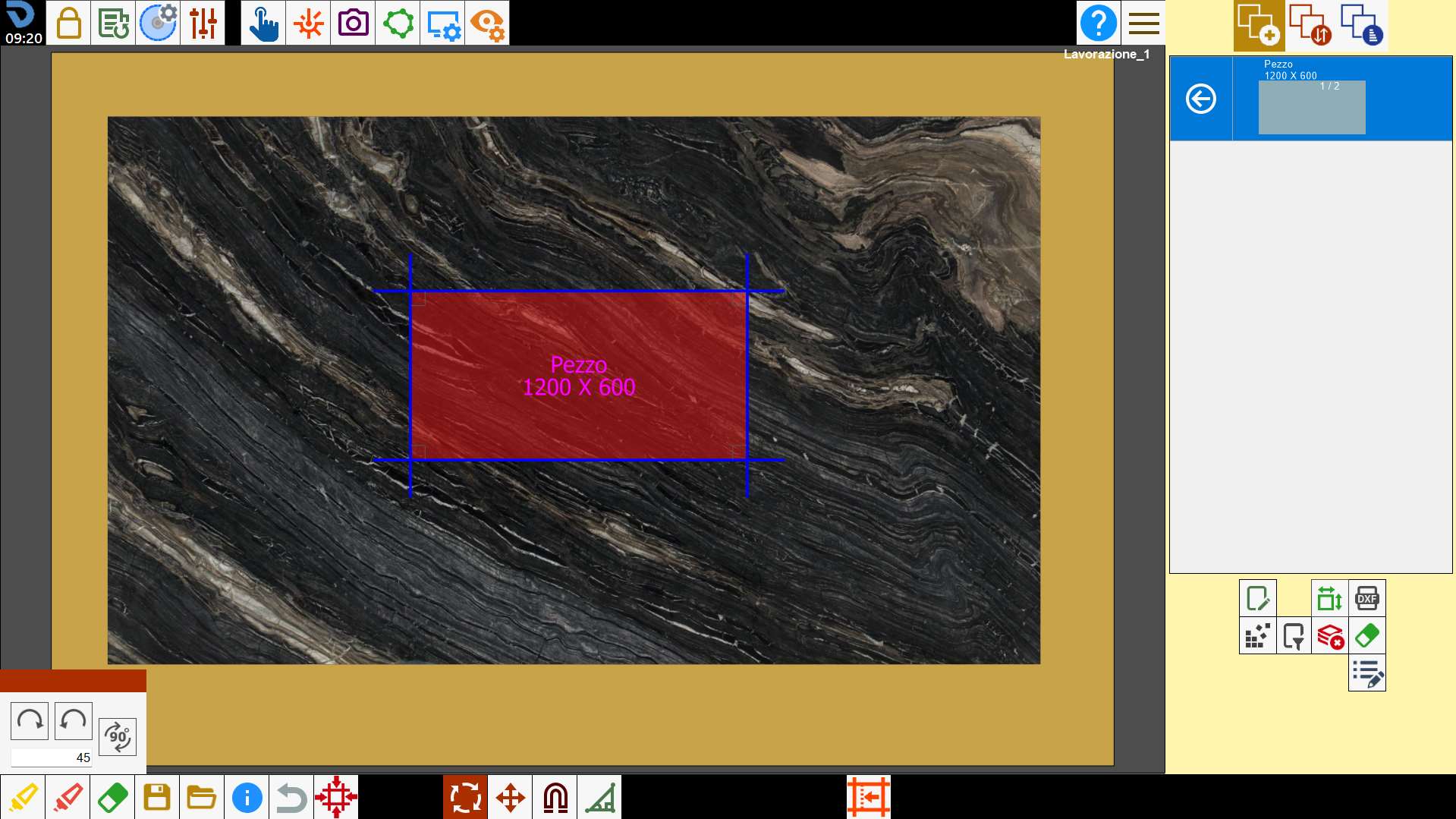

Apply rotation

You want to apply to the piece a rotation of 45 degrees clockwise.

Cancel operation

This function serves to cancel the last operation executed.
For example if the operator makes a mistake deleting a piece, by pressing this button he can go back to before he deleted the piece.
