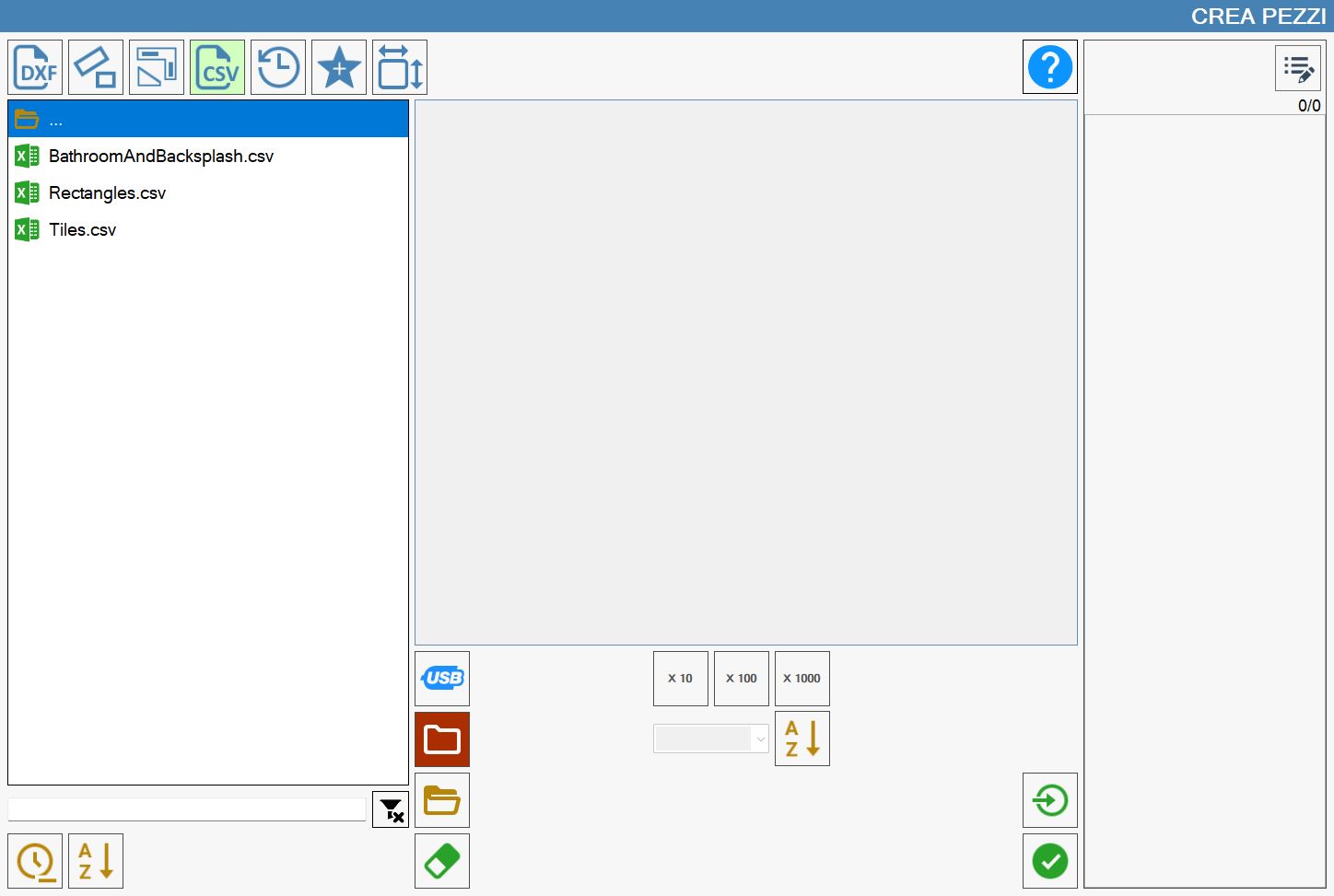

This section allows the operator to import pieces from CSV files.
_import/schermata_pulita_eng-20250321-091704.png)
Preview
The list on the left of this section shows all CSV files in the currently selected path.
Pressing an item in the CSV file list updates the preview in the central part of this section.

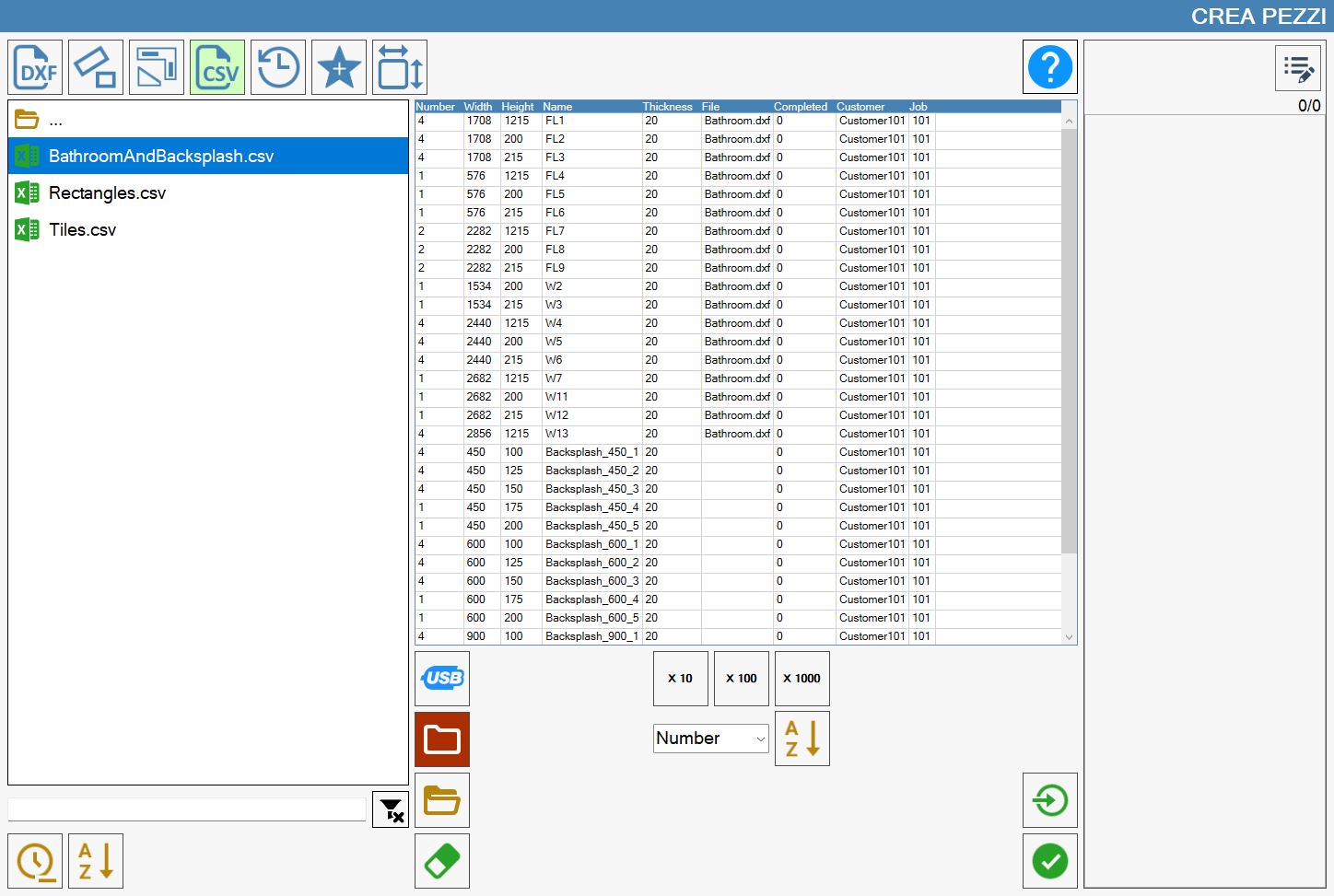

The following example shows the preview being updated after the first item in the list is pressed:
_import/schermata_bagno_eng-20250321-092252.png)
Bounding-box multipliers
The overall dimensions of the pieces in the selected CSV file can be multiplied by 10, 100 or 1000.
The following image shows the three available multipliers:
_import/pulsanti_moltiplicatore-20250320-154918.png)

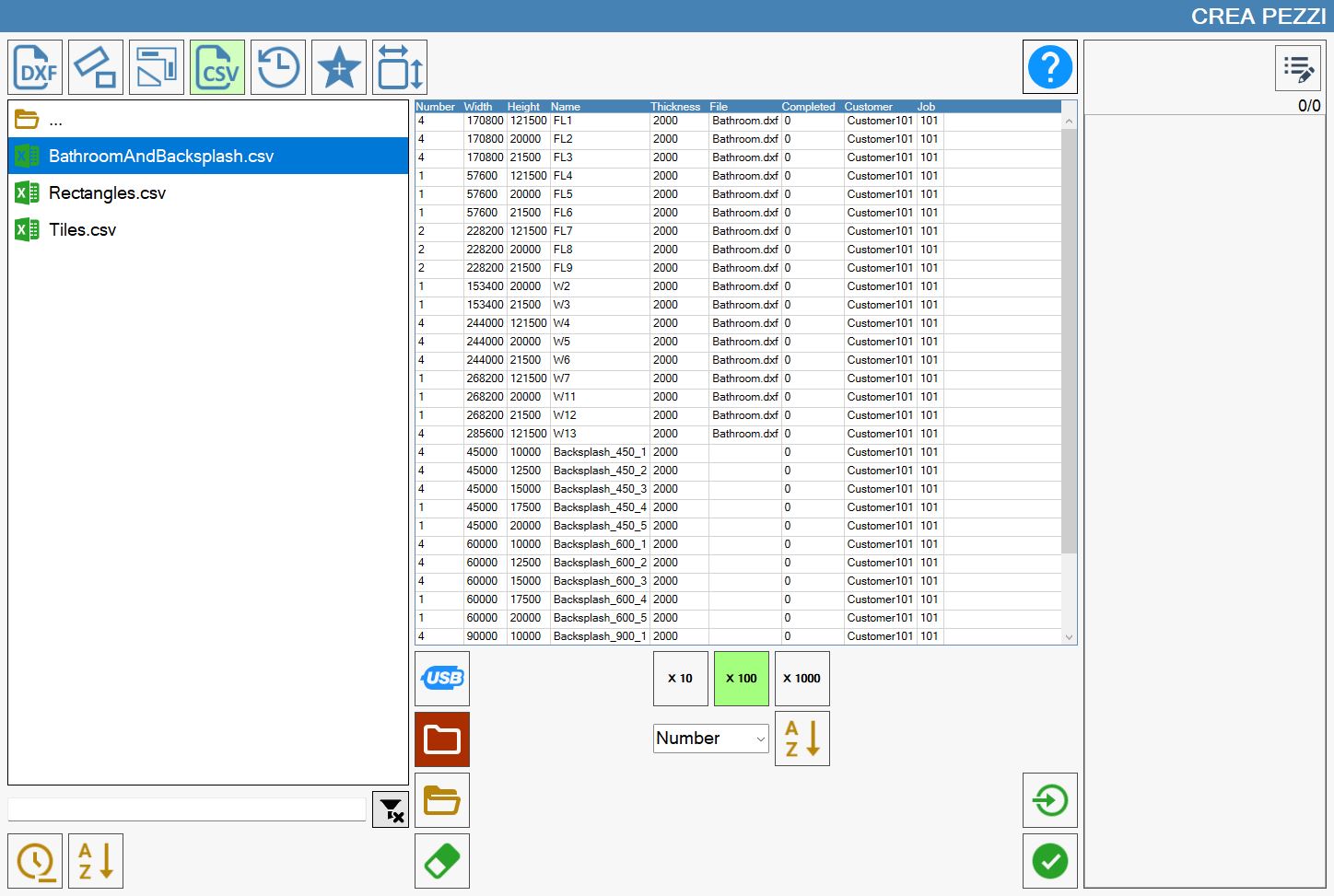

The following image updates the example shown in the “Preview” chapter, where the “Width”, “height” and “thickness” values change after pressing the second bounding-box multiplier button “X 100”:
_import/image-20250325-132949.png)
This example also highlights how the “X 100” button is updated after being clicked, changing its background colour to light green.
Sorting
The sorting function populates the sorting list based on the fields in the selected CSV file and allows the operator, if desired, to apply an alphabetical or reverse-alphabetical filter based on one of the fields provided in the selected file.
_import/sezione_ordinamento_eng-20250320-155220.png)
