This function allows the operator to retrieve the history of created pieces.

Piece view types in history

Three different display modes are available for the pieces in this section:

	Cut view The piece is displayed showing the cuts.
	Dimension view The piece is displayed showing the dimensions.
	Bounding-box view The piece is displayed showing its overall dimensions.

In the following examples, five pieces (A1, A2, A3, A4 and A5) were imported from the DXF named “Kitchen_Curve”.
Regardless of the selected view, all pieces can always be displayed both in the history list on the left and in the list of currently imported pieces on the right.

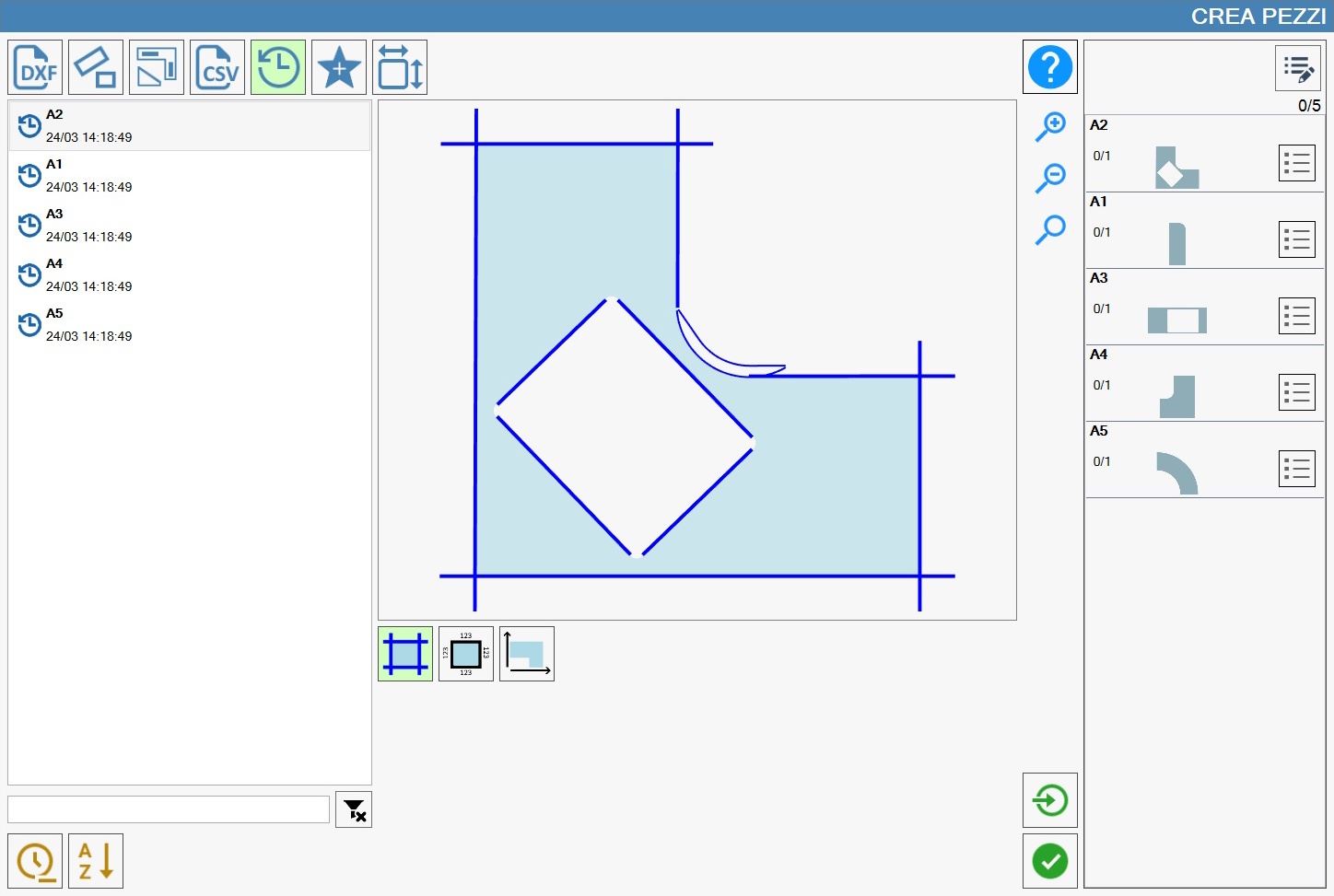

Cut view

The cut view highlights all cuts, both perimeter cuts and cuts inside the piece, while hiding other information such as their length values.

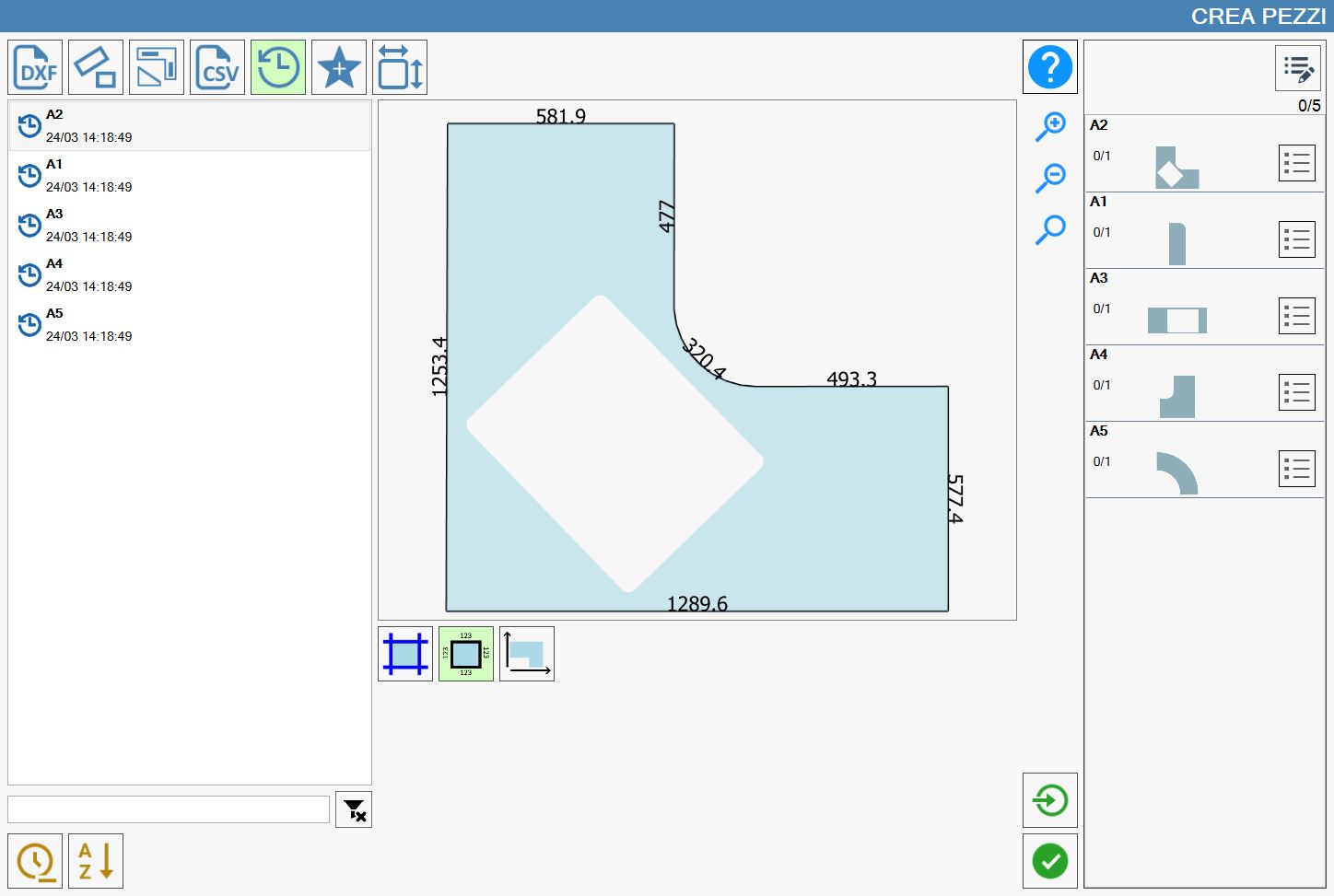

Cut dimension view

The cut dimension view highlights the external perimeter in black and displays the corresponding length near the centre of each cut on the perimeter.

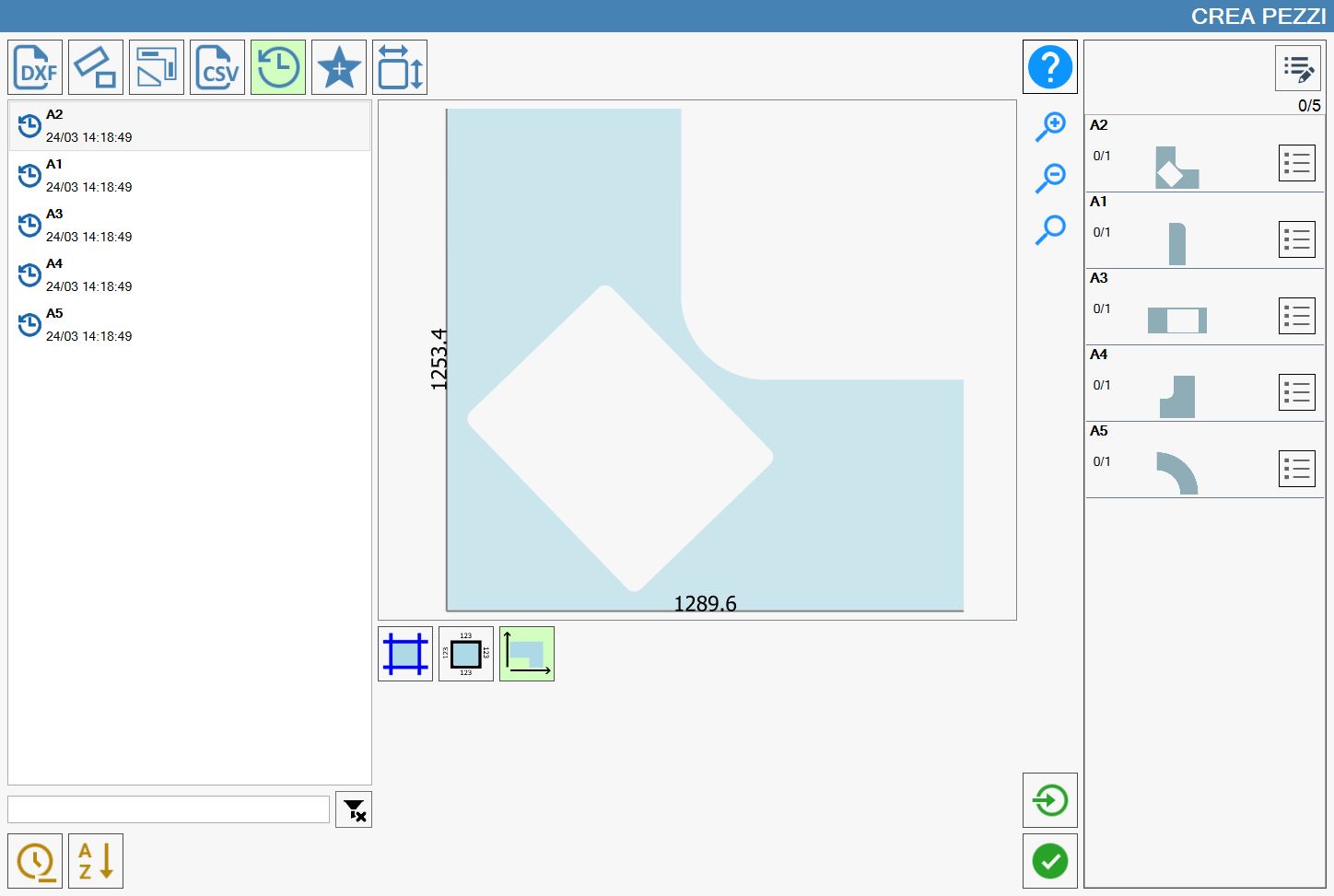

Bounding-box view

The bounding-box view does not highlight any cuts; instead, it shows the maximum dimensions of the piece in terms of width and length.
The following image shows two black lines, each with the maximum length and width value of the piece at its centre. It is important to note that the sides of piece A2 coincide with the black lines only by coincidence; the remaining cuts of the piece are not highlighted and show no information.
