This function allows any piece to be converted into its rectangular MaxBound shape, i.e. the smallest rectangle capable of containing it completely.

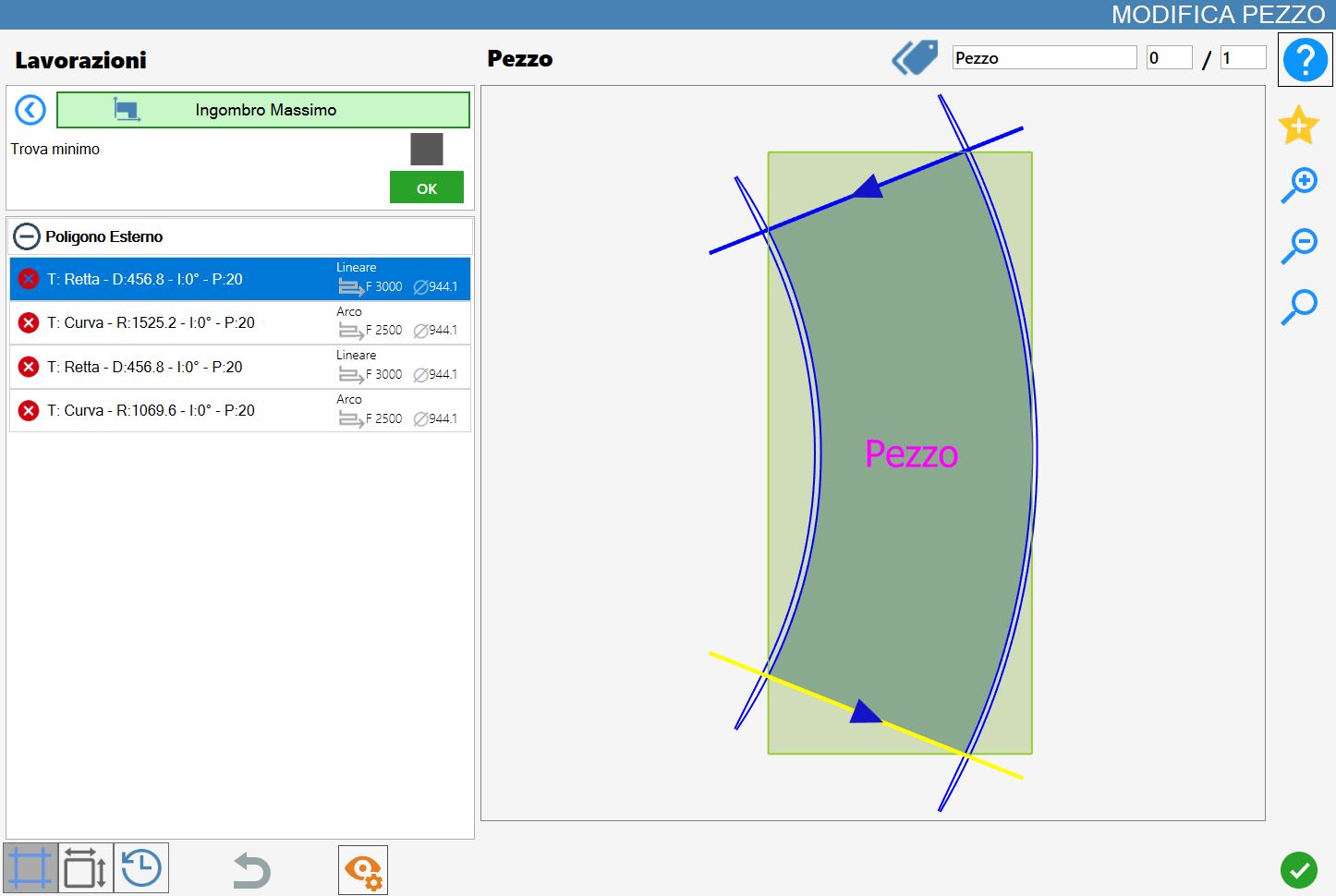

The interface for this function is similar to the following image:
/2.2-20250630-112112.png)
Parameters
The following parameter can be enabled by clicking the checkbox to its right.
Find minimum | This function calculates the minimum bounding area of the piece on the slab surface, optimising its positioning. |
Executing the working
Parameter disabled

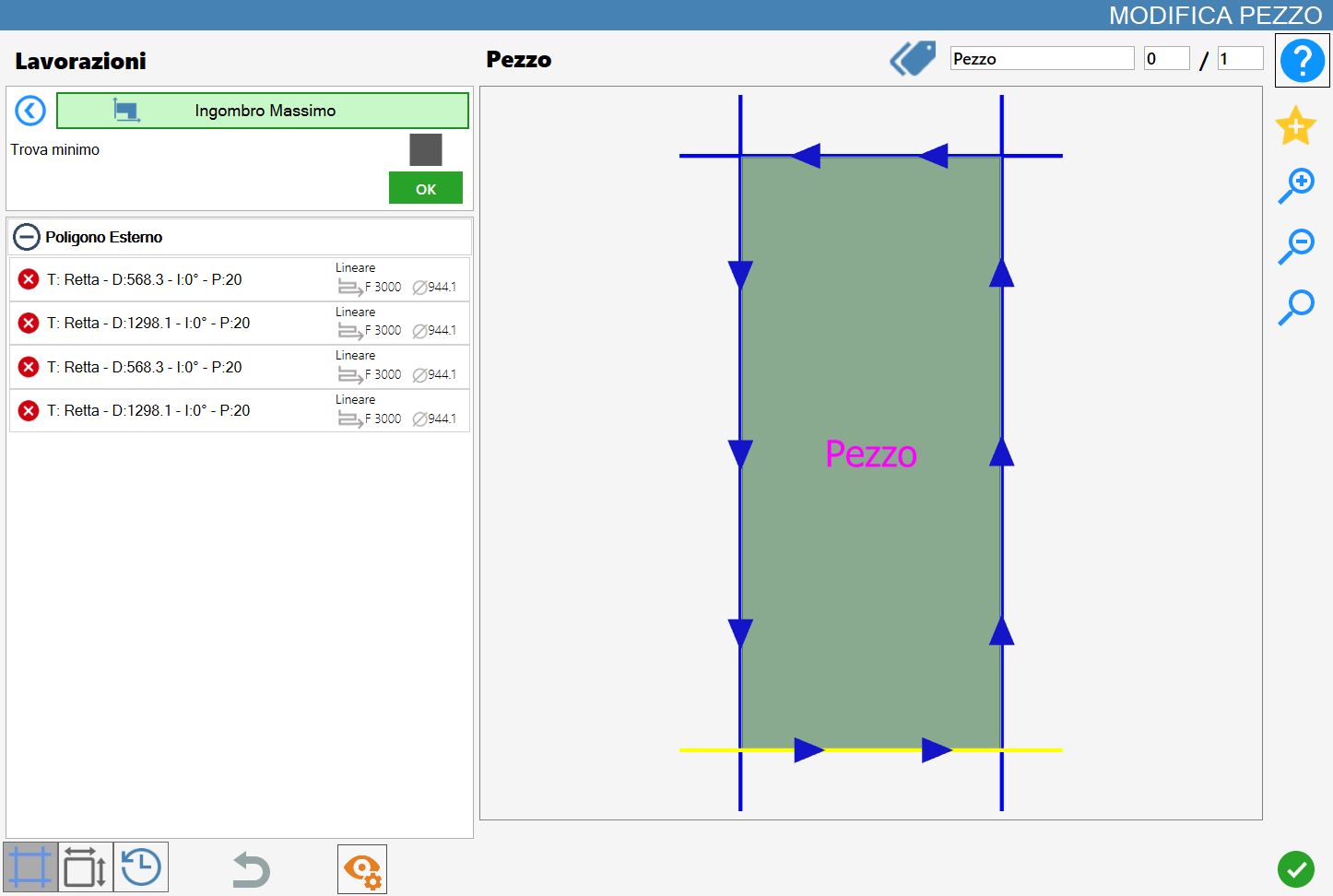

Clicking the ‘OK’ button converts the piece to its rectangular version.
/2.0-20250630-112001.png)
Parameter enabled

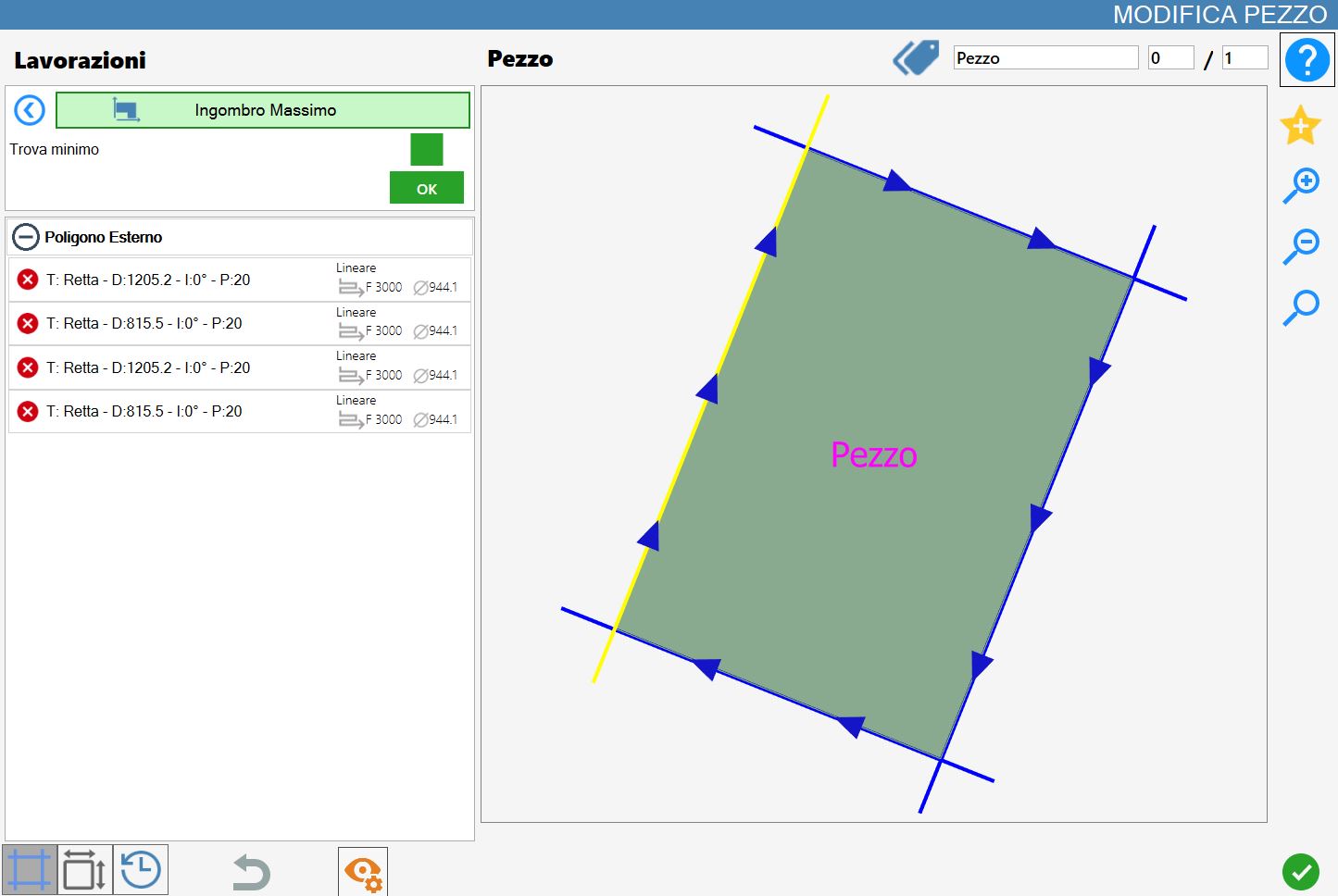

Clicking the checkbox and then the ‘OK’ button applies the working to the piece:
/2.1-20250630-112041.png)
