DOC3.13.20 MIRROR

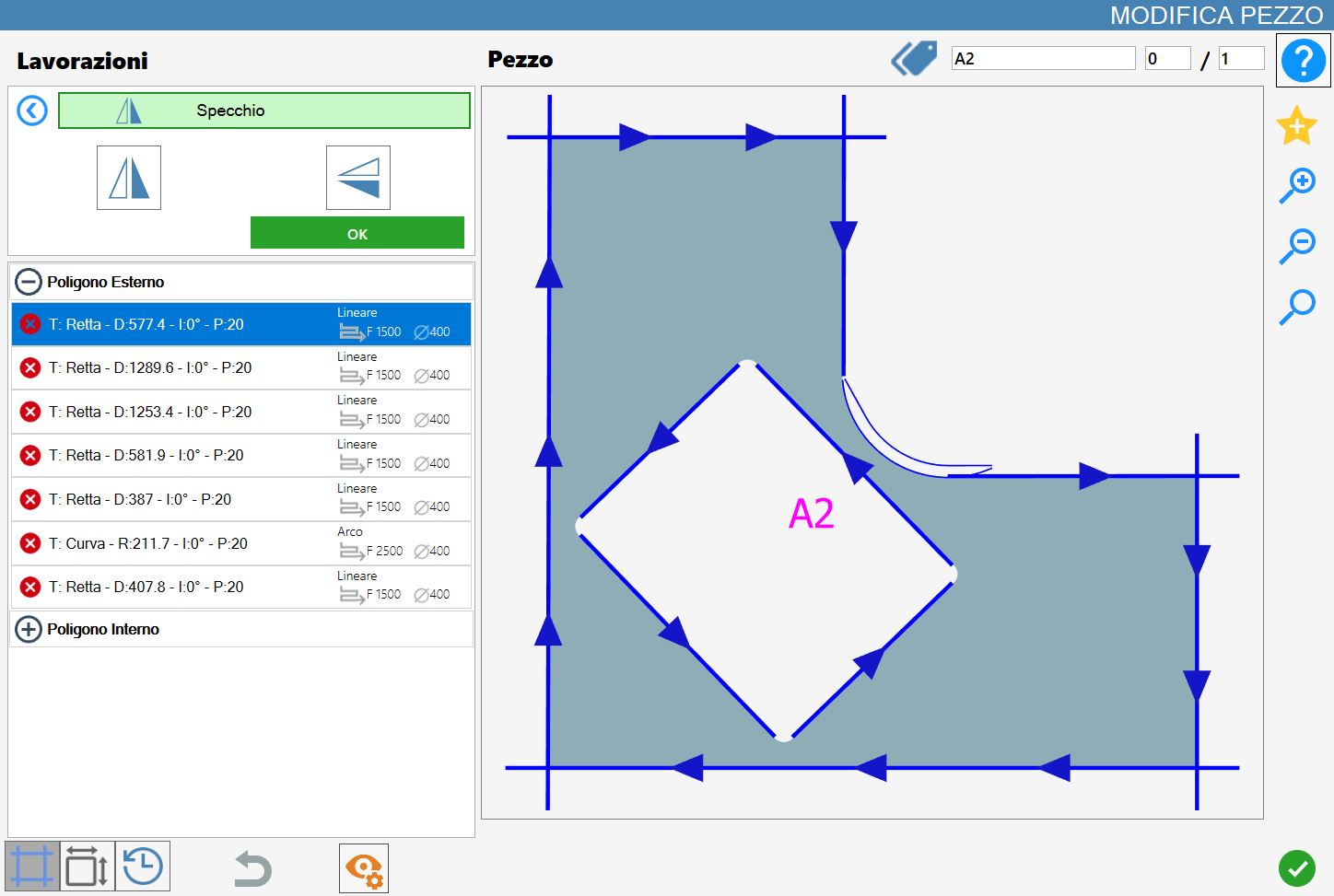

This function allows the operator to flip the selected piece horizontally and/or vertically.


Parameters


Horizontal mirror
Enabling this button applies a preview of the horizontal flip of the selected piece.


Vertical mirror
Enabling this button applies a preview of the vertical flip of the selected piece.

Executing the working

Horizontal and vertical flipping can be applied at the same time, or only one of them can be applied.
There are therefore three possible results:

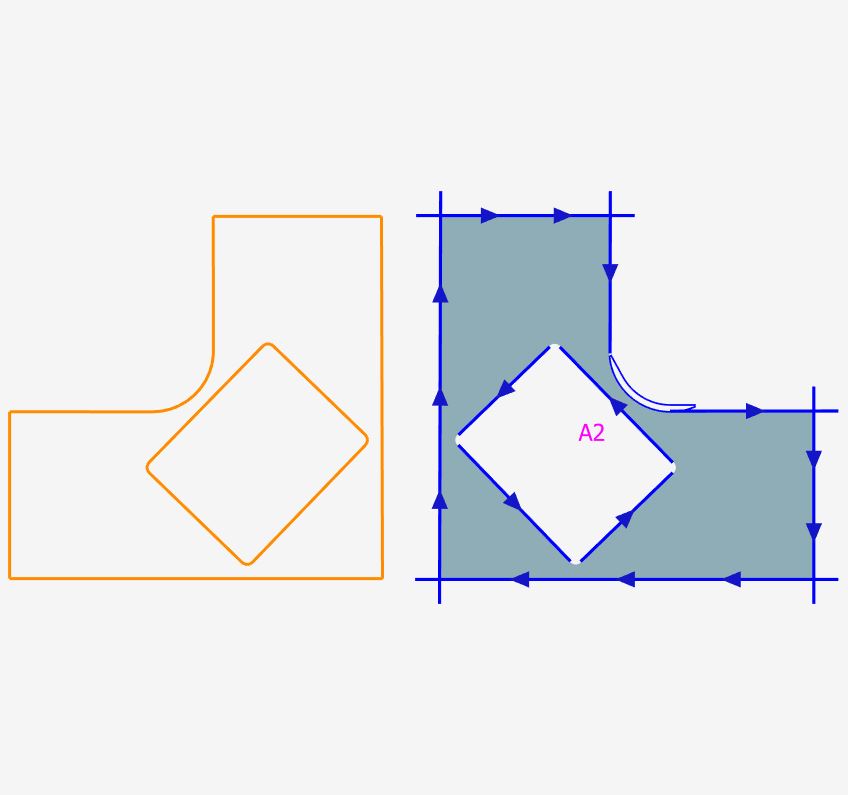

Horizontal flip only

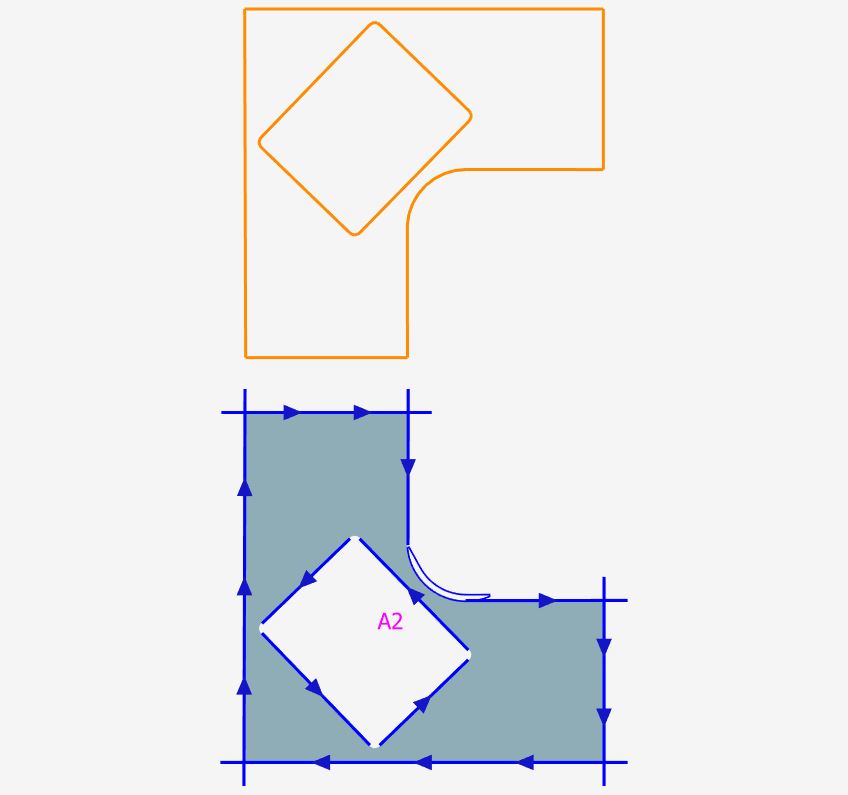

Vertical flip only

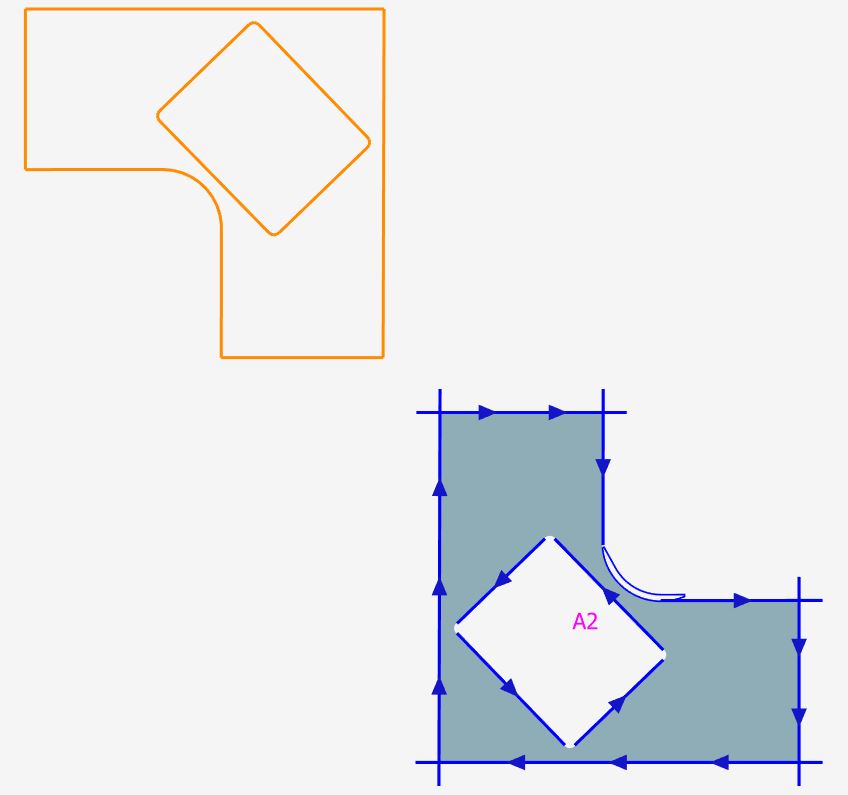

Horizontal and Vertical flip

;
