DOC3.16 SAVE WORKING

This function saves the state of the slab and the created pieces.


Buttons


Save
Saves the state of the current working.

How to save a state

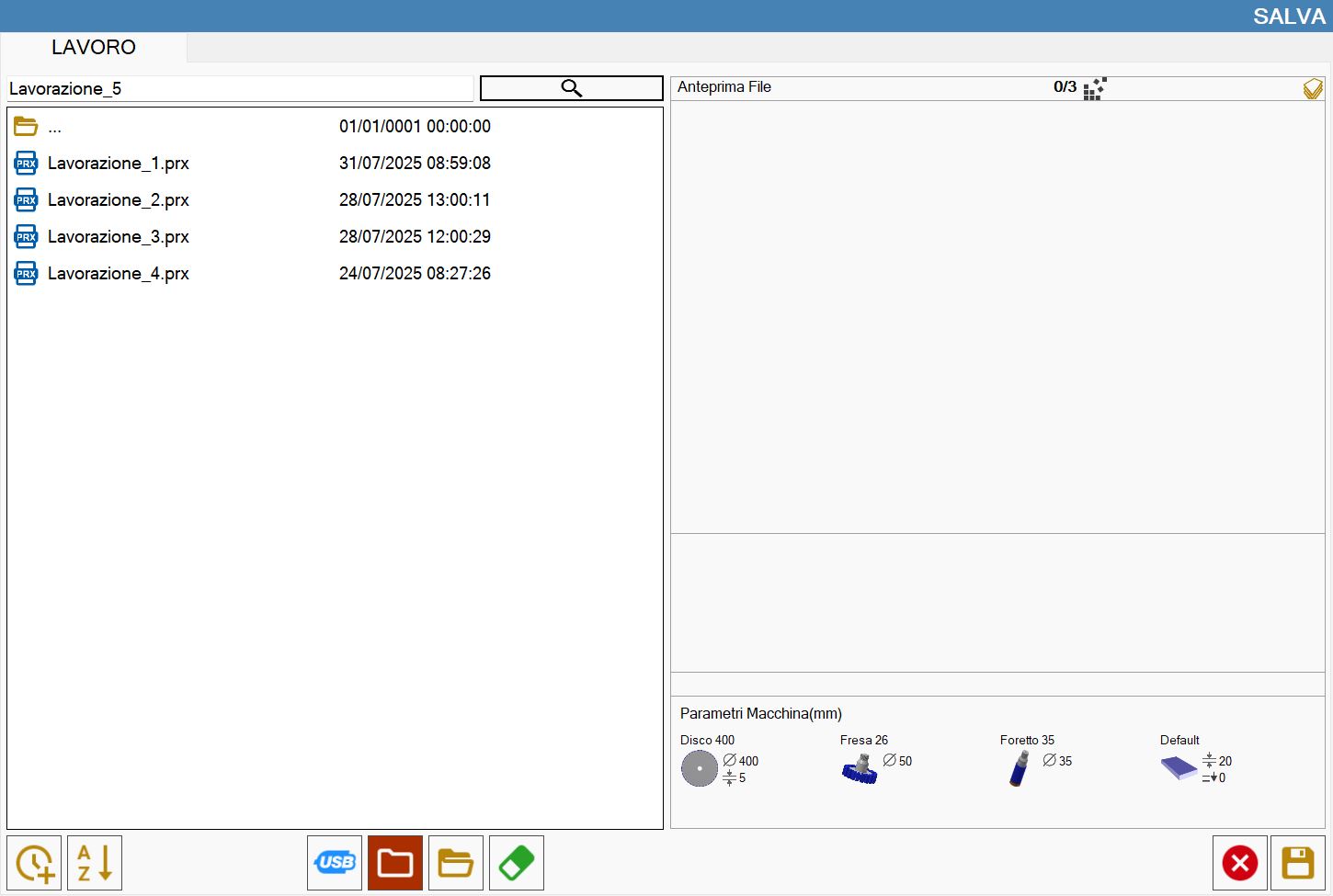

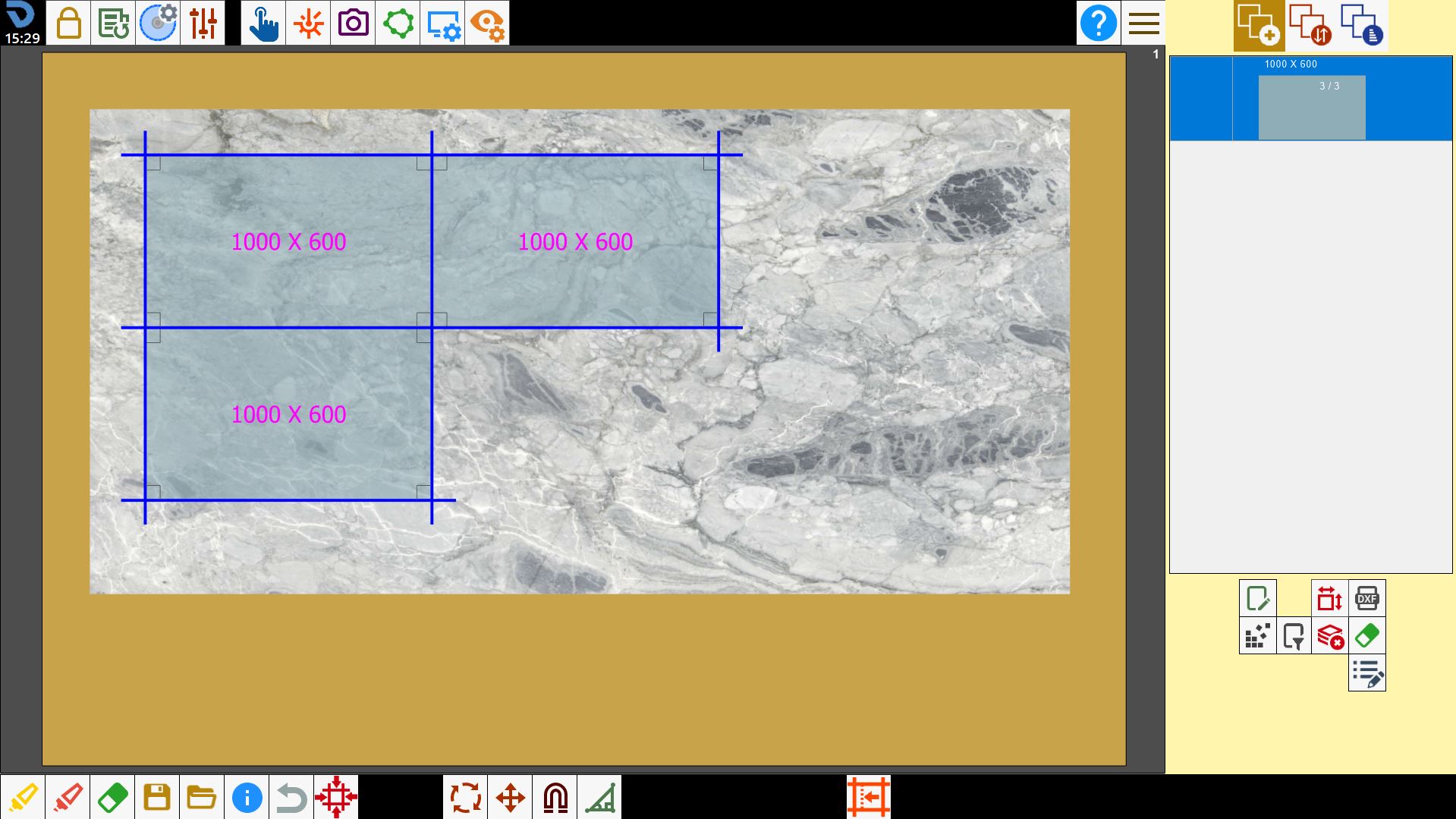

Once the pieces have been arranged in the work area, the panel for saving the state can be opened.


Choose the name to use for saving the file in the text box at the top.
Confirm the choice using the save button.

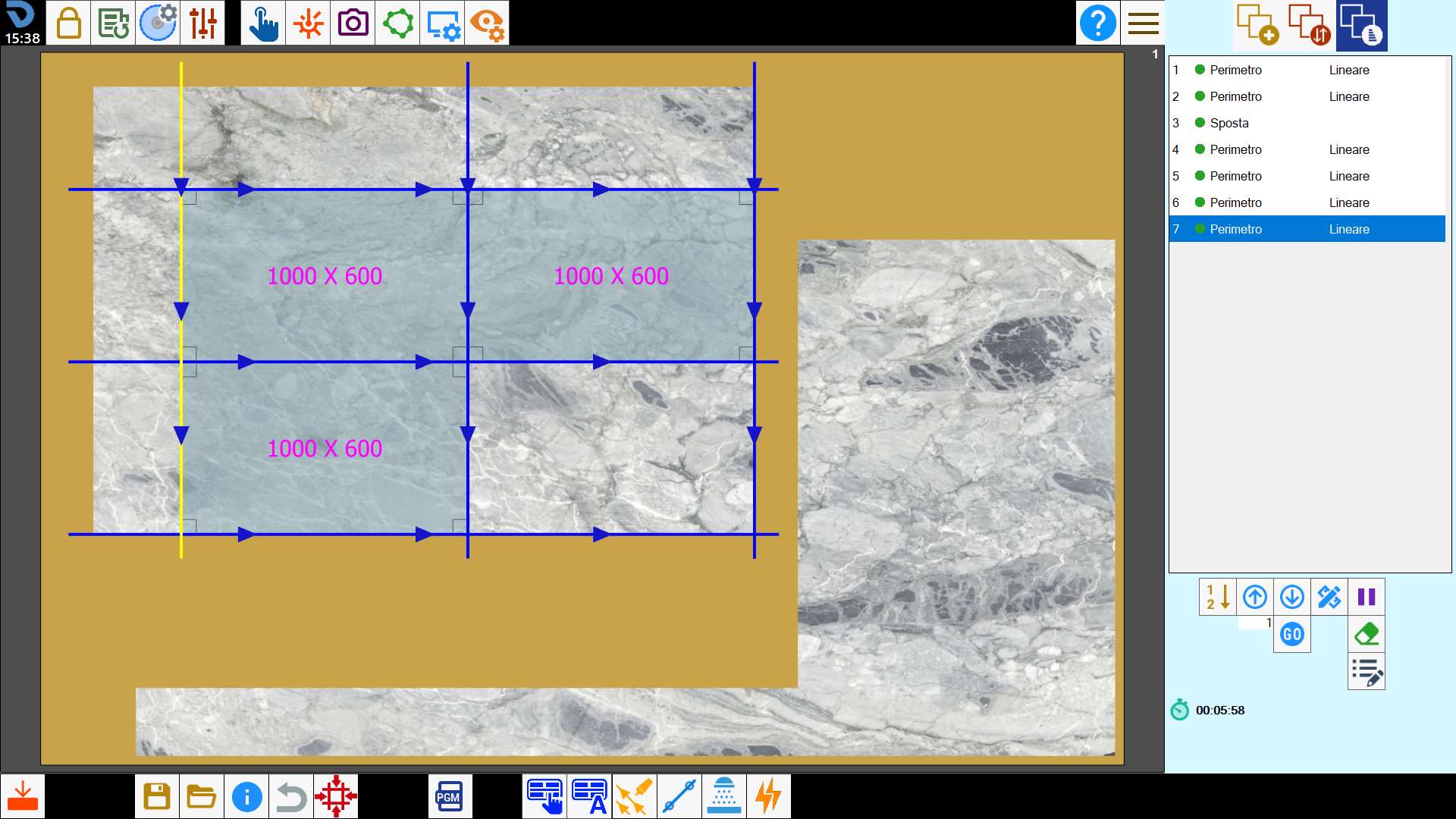

From the third Parametrix screen, it is also possible to save the state of a working after programming the cuts to be performed on the slab.


Save as DXF (Optional)

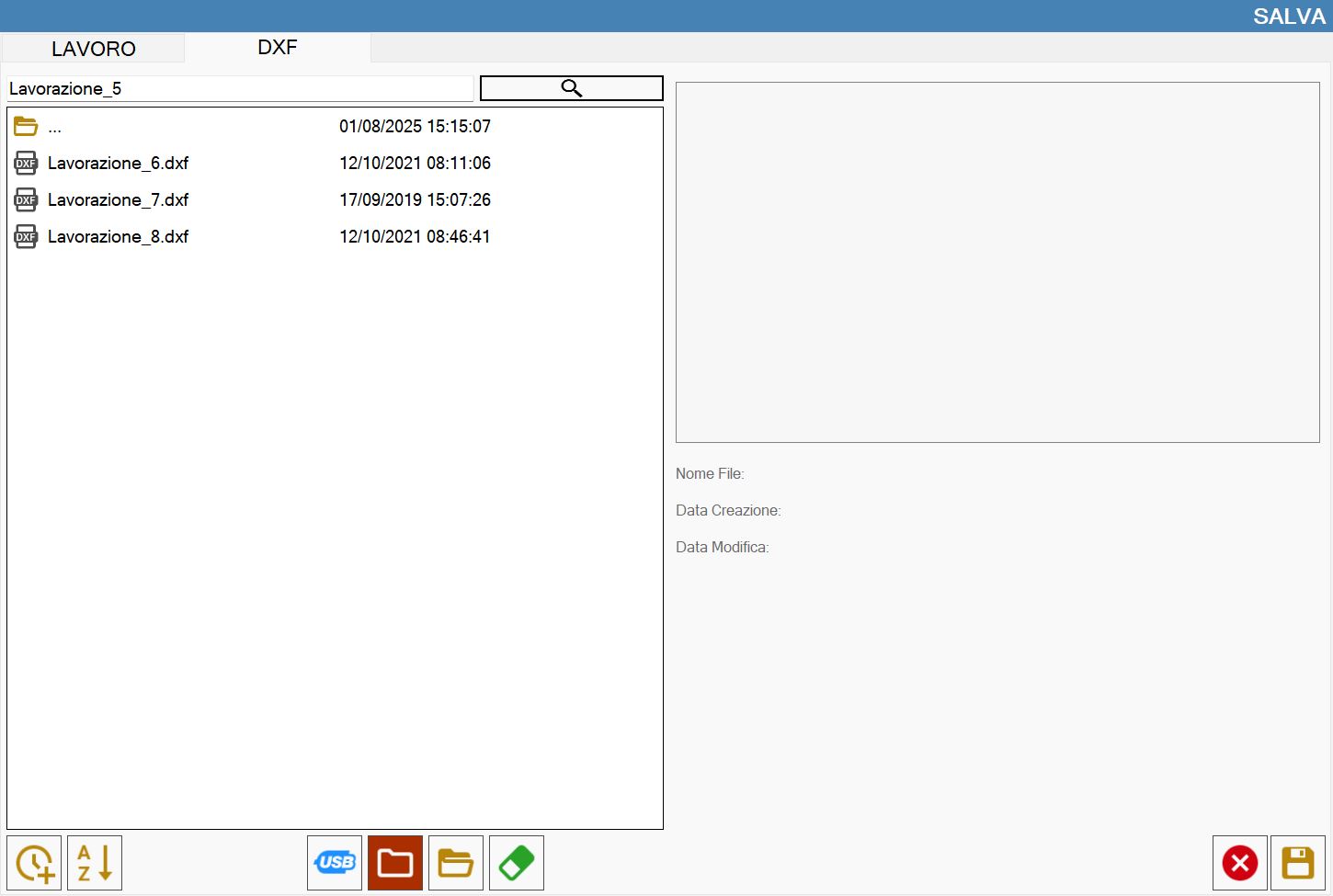

This function saves the state of the slab and the pieces it contains to a DXF file.


;
