A washing cycle for the area can be started manually, automatic addition of the entire workbench can be enabled, and a portion to be cleaned can be selected.

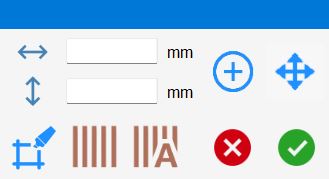

Parameters

	Width Displays the width of the area being created.
	height Displays the height of the area being created.
	Create area Creates an area that the operator can resize and move according to where washing is to be performed.
	Move The operator can move the area being created.
	Piece washing Creates a washing area slightly larger than a selected piece.
	Clean workbench The entire workbench area will undergo a washing cycle.
	Automatic washing cycle Automatically adds a “Bench Washing” phase at the end of the cut list. It will be added when switching to the cutting window.

Washing-cycle insertion mode

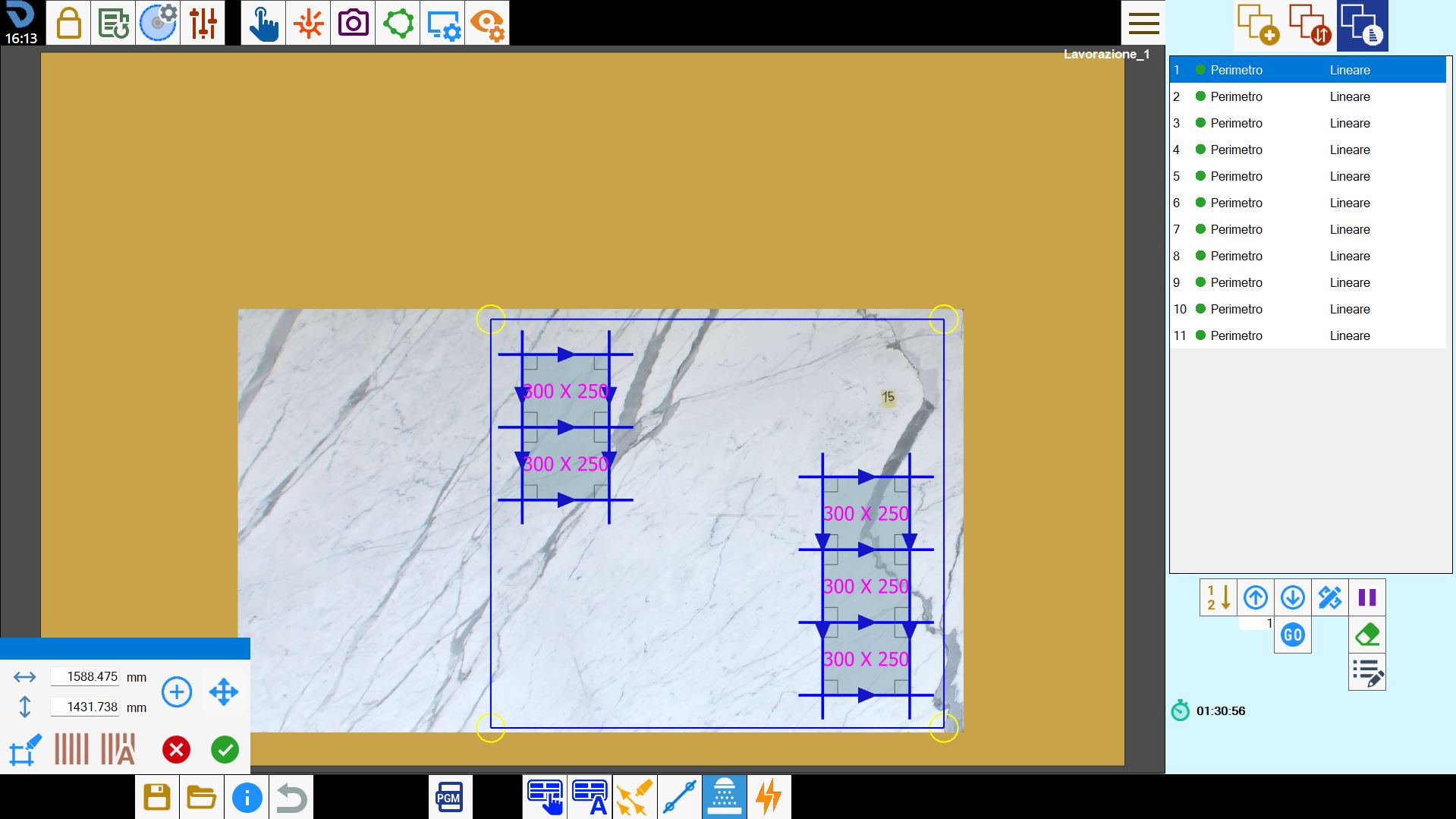

Adding a washing cycle inserts a rectangle in the work area indicating the portion of the workbench to be washed.
Multiple washing cycles can be inserted; their areas can also overlap partially or completely.
Each new washing cycle is added to the end of the cut list on the right.

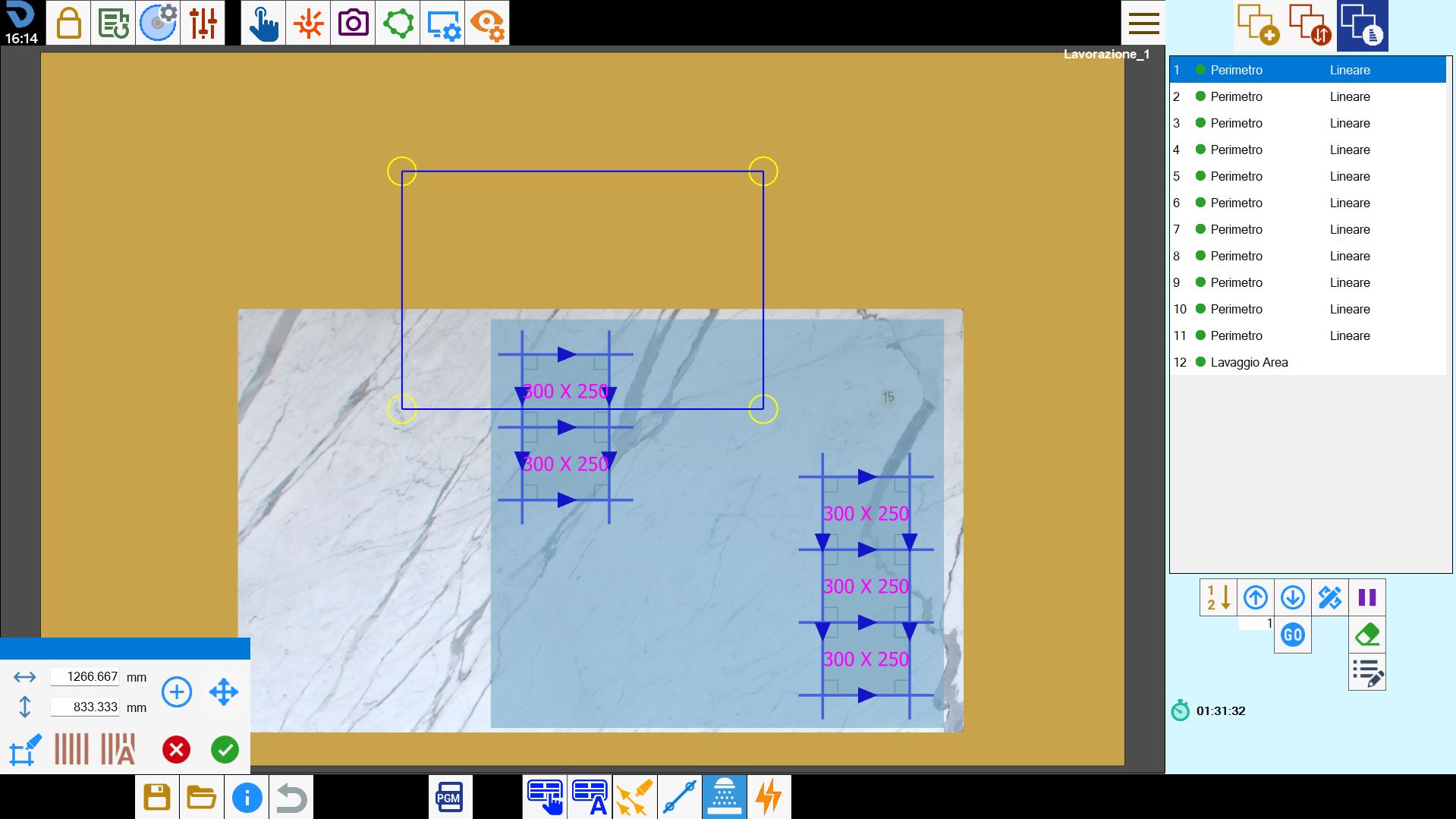

Manual area selection

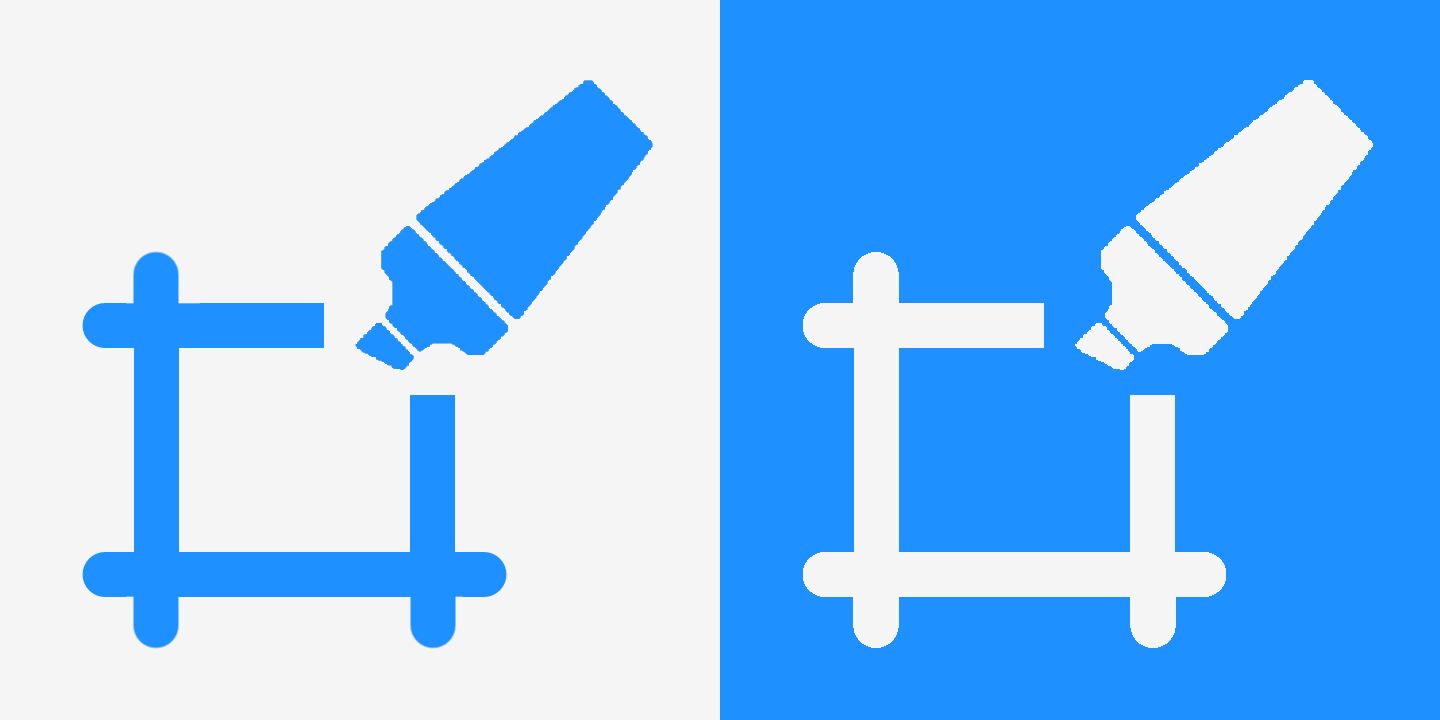

Pressing the button enables custom washing areas to be added.
The area can then be moved and resized.

After adjusting the washing-cycle area as desired, another area to be washed can be added by pressing the button again.

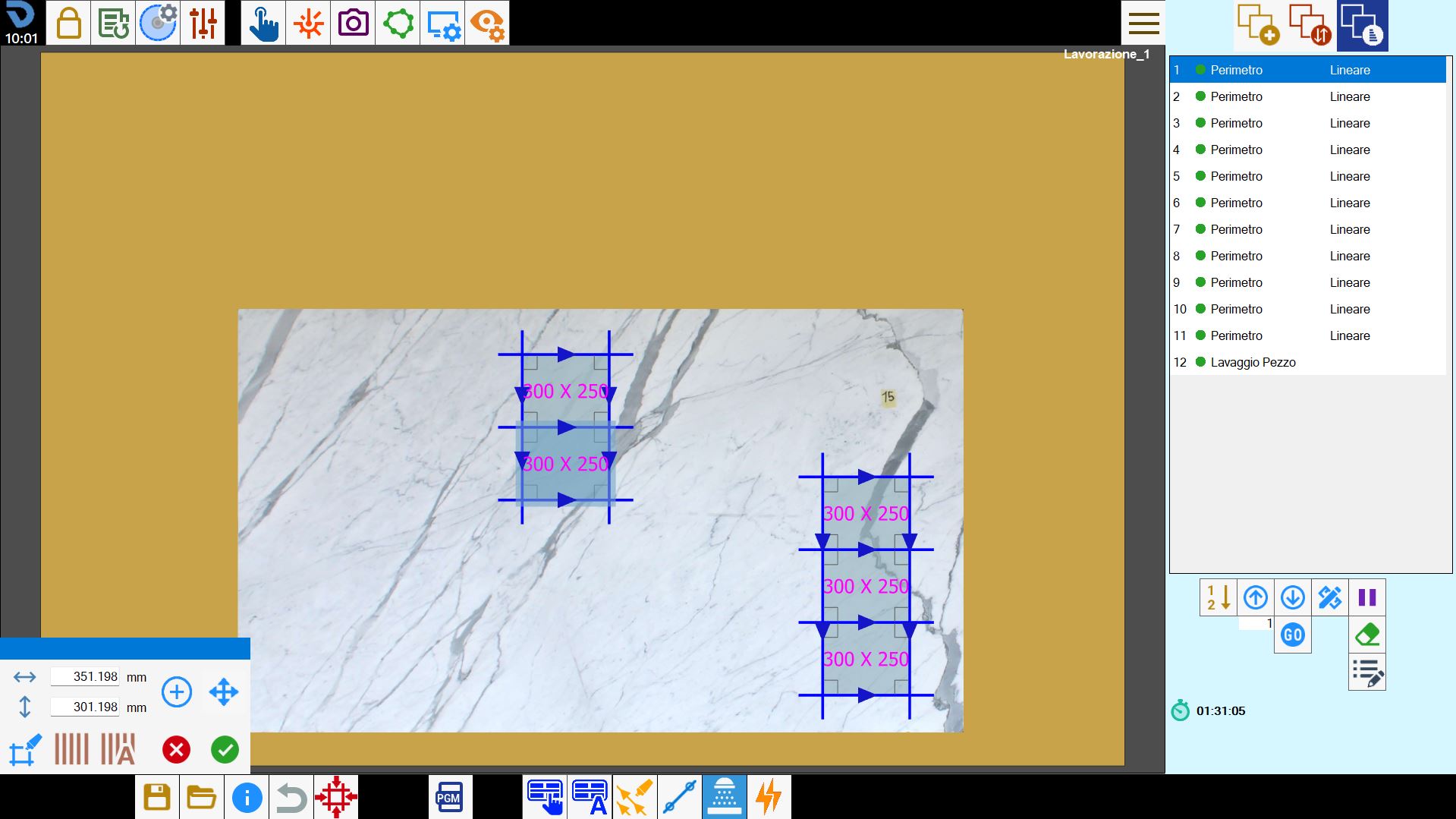

Piece washing

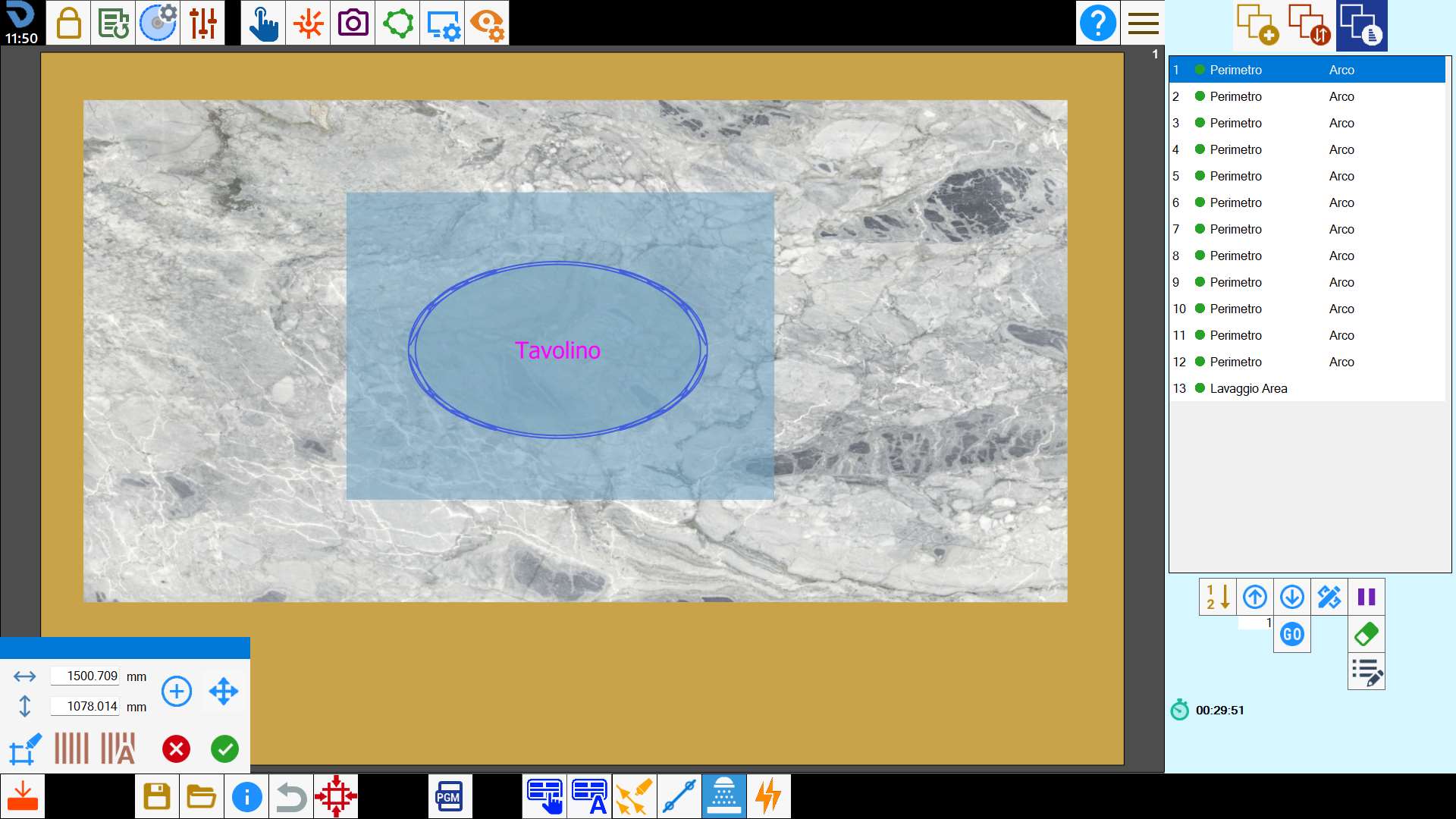

When this mode is enabled, the operator can select a piece. After selection, the system automatically generates a rectangular area that completely encloses the selected piece, as shown in the following example:

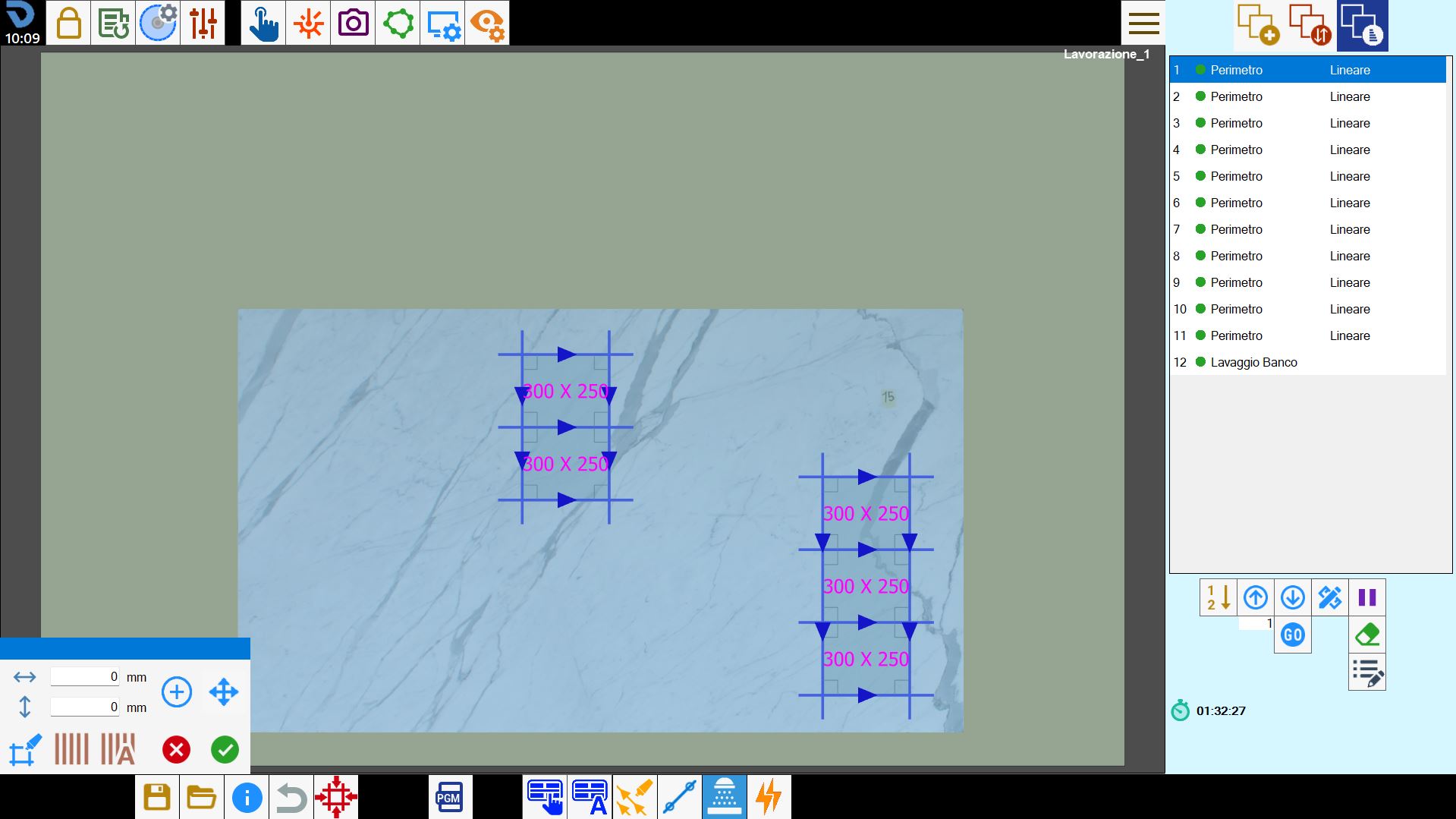

Complete workbench washing

Using this mode, the system automatically adds a cut called “Bench Washing” to the cut list and displays its corresponding representation in the work area.
