Donatoni Macchine
Technical maintenance sheet Controlled procedure

MN0039CLEANING ELECTRICAL CABINET VENT FILTERS

Before proceeding, carefully read the

SAFETY INSTRUCTIONS

Intervalevery 2000 working hours

Operation complexityLow01 / 05

Authorized personnelMachine operator

Required PPE:

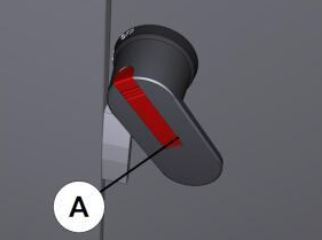

  1. Shut down the machine correctly and turn the switch to the OFF position

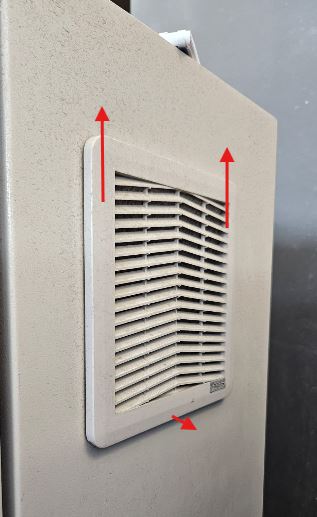

  2. Remove the cover by releasing it from the bottom and moving it upward

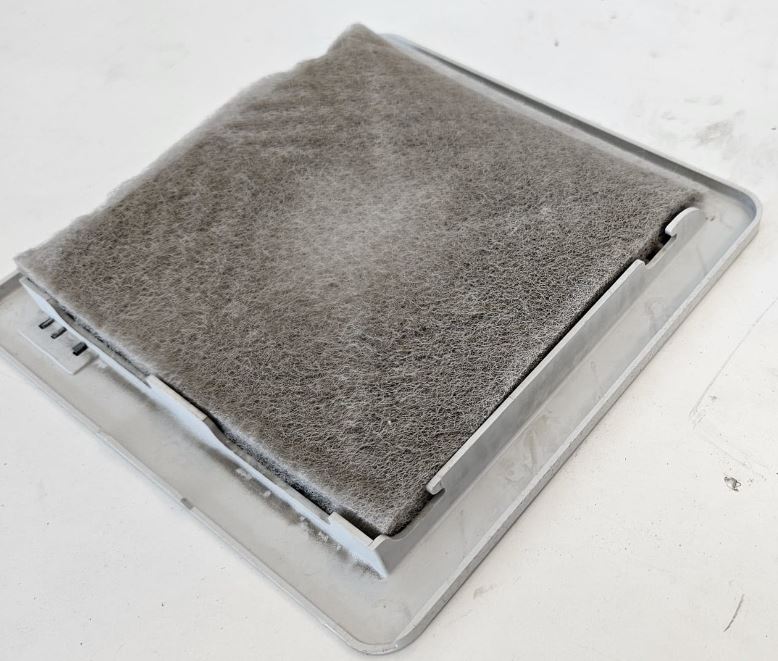

  3. Clean the filter using an air gun


  4. Reassemble everything by carrying out the procedure in reverse order

;
