Donatoni Macchine
Technical maintenance sheet Controlled procedure

MN0045MANUAL GREASING

Before proceeding, carefully read the

SAFETY INSTRUCTIONS

Intervalevery 300 working hours

Operation complexityLow01 / 05

Authorized personnelMachine operator

Required PPE:


Use a suitable grease gun to grease the various points listed below with 1cm3 of EP1 grease:

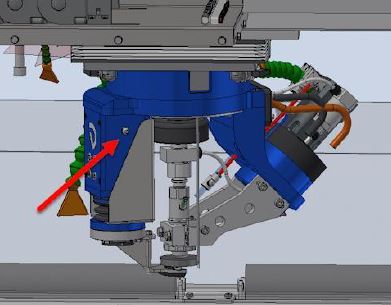

TOOL_ side spindle linear guides

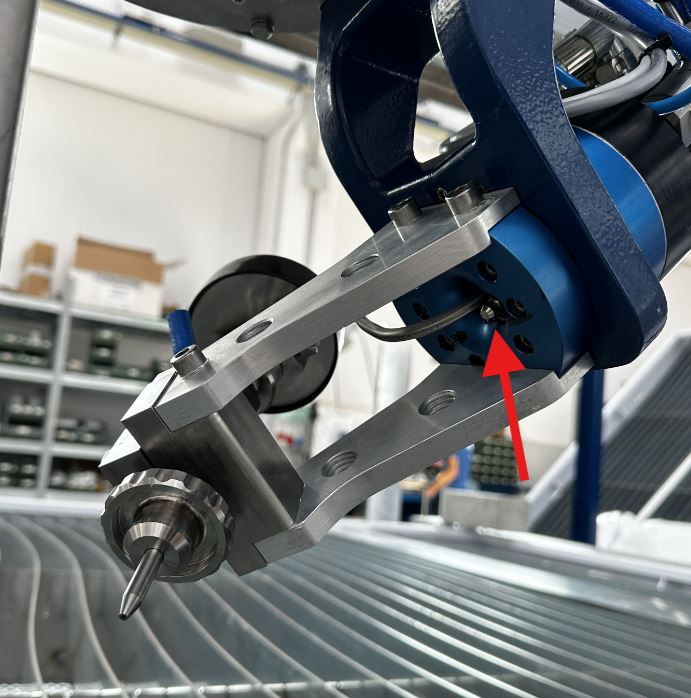

Slab probe linear guides

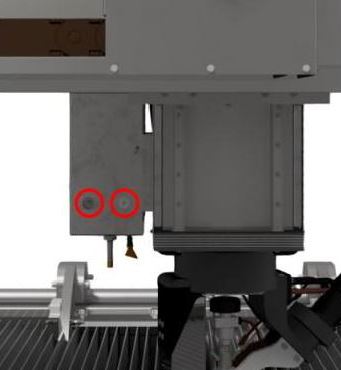

Axis A gearbox passage

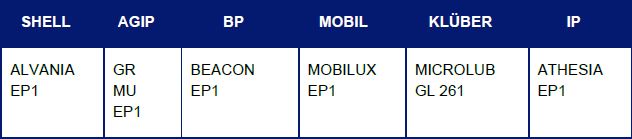

Lubricant comparison table


;
